The EGR system helps to reduce harmful emissions. It also improves engine performance. If you have ever wondered how your vehicle meets strict environmental rules while still performing well, then EGR system is your answer. EGR diesel plays a key role in that. We’ll also show you how to use an ANCEL OBD2 scanner to quickly identify and troubleshoot EGR-related trouble codes, helping you save time and repair costs.
This guide will explain what EGR is and everything else about the system.
So, here we go:
Exhaust Gas Recirculation Explained!
EGR is a technology used in internal combustion engines. This is particularly used in diesel engines and some gasoline engines. Its most critical function is to reduce the levels of nitrogen oxide (NOx) emission. Nitrogen Oxide is an air pollutant that is harmful and can affect the quality of the air and contribute towards the formation of smog.
How Does EGR Work?
The idea behind the EGR system is very simple. It returns some of the exhaust gases formed in the process of combustion to the intake system of the engine. This process reduces the combustion temperature thus reducing the NOx emission level.
- EGR is a process that take some of the gas after fuel combustion. The main ones are carbon dioxide (CO2) and other non-reactive gases. They are then returned to the intake manifold of the engine by the EGR.
- Diesel EGR effects the overall oxygen content in the combustion chamber by mixing exhaust gases with fresh air. This dilution is one of the ways in which peak temperature during the process of combustion is reduced.
- Nitrogen oxides take place under high temperatures. EGR is being used by diesel engines to reduce the combustion temperature very greatly.
This system ultimately reduces the amount of NOx emissions created.
Related Reading: Using a Car Scanner to Diagnose a Faulty EGR Position Sensor | ANCEL
The Role of EGR in Diesel Engines
In general, the diesel engines emit more NOx. This is largely due to the fact that they work at elevated compression ratios and combustion temperatures. This makes EGR especially important for diesel engines. By recycling exhaust gases, diesel EGR helps these engines meet strict emission standards while still performing well.
Benefits of EGR Diesel You Must Know
EGR systems provide several advantages. This is making them an important part of modern engines. Let’s have a look at some of the key advantages of EGR here.
- Reduced NOx Emissions
The greatest advantage of EGR is that the emissions of NOx are reduced. It is necessary to have a proper mechanism of controlling these emissions with more stringent environmental regulations. Fortunately, there is the ERG diesel which has made things possible for the manufacturer and the consumers. - Improved Fuel Efficiency
EGR will help you to optimize combustion temperatures and reduce energy loss.
This can ultimately lead to better fuel efficiency. This means your vehicle can go further on less fuel. So, this means ERG is making your vehicle both cost-effective and better for the environment. - Enhanced Combustion Stability
EGR ensures the smooth and stable combustion. This enables to avoid issues such as knocking and pre-ignition. These problems otherwise can damage engine parts over time. - Lower Engine Temperature
EGR decreases the thermal stress on engine parts. It does so by reducing peak combustion temperatures. This can help your engine to last longer and reduce wear and tear in the best possible way. - Less Particulate Matter
EGR can also be used to minimize particulate matter (PM) as well as the reduction of NOx emission. It usually contains small particles that can adversely affect air quality and cause different health hazards.
Limitations of EGR Systems You Need to Know.
While EGR systems have many benefits, they also come with some drawbacks. Both engine manufacturers and vehicle owners should keep these potential limitations of ERG systems in mind.
- Reduced Power Output
One downside of using EGR is that there is a possibility of the engine power being reduced. The air-fuel dilution can lead to a drop of power. This is especially true during heavy acceleration or when the engine is under a lot of loads. - Incomplete Combustion
Too much EGR can cause incomplete combustion in some cases. It will be leading to rough idling, misfires, and lower engine efficiency. It is important to tun the EGR system properly to prevent this problem. - Maintenance Needs
EGR systems can build up carbon deposits over time. These might clog the EGR valve diesel and related parts. Regular maintenance and use of diesel EGR cleaner are important to keep the system working properly. - Complexity and Cost
It can make the design of the engine more complex when you add an EGR system to it. It is because this requires the installation of additional components like EGR valve diesel and sensors. These additional components also increase the manufacturing cost and repair costs as well. - Impact on Cooling System
EGR brings hot exhaust gases back into the intake system. This can raise the temperature of the intake air. The hot intake air ultimately may affect the efficiency of the cooling system of your vehicle. This is especially true in hot weather or when the engine is heavily loaded.
Common Problems with EGR Systems That May Affect Engine Performance
EGR systems may at times have different problems that may affect the way your engine operates. Some of the common problems to watch out for are below.
- Carbon Buildup
One of the challenges that are experienced in EGR systems include the carbon buildup. Over time, the exhaust gasses may leave deposits in the EGR valve which may lead to blocking of the passage ways towards the intake manifold. This may block exhaust gas flow and lead to problems with engine performance. - Sticking EGR Valve
The EGR valve may fail due to the carbon deposits or by getting stuck in the operation position. If the valve gets stuck in an open position, rough idling or a decrease of performance can occur. When it is stuck closed, it could result in an increased NOx emission. - Sensor Failures
Modern EGR systems use various sensors to monitor and control exhaust gas flow. It can disrupt the performance of whole EGR system if one of these sensors fails or gives incorrect readings to Ancel Scanner. - Blocked EGR Passageways
The pathways which pass the exhaust gases into the intake can be obstructed. This occurs because of carbon deposits buildup or some other debris. This blockage can reduce engine performance and increase emissions. - Engine Warning Lights
It is possible to trigger the check engine warning on your dashboard if the EGR system malfunctions. It would help if the problem is checked as soon as possible if this light comes on. This is necessary to avoid further damage.
Ways for Troubleshooting EGR Systems Effectively
If you think your vehicle’s EGR system is not working right, hold on. Here are some troubleshooting steps you can take:
- Use Diagnostic Tools

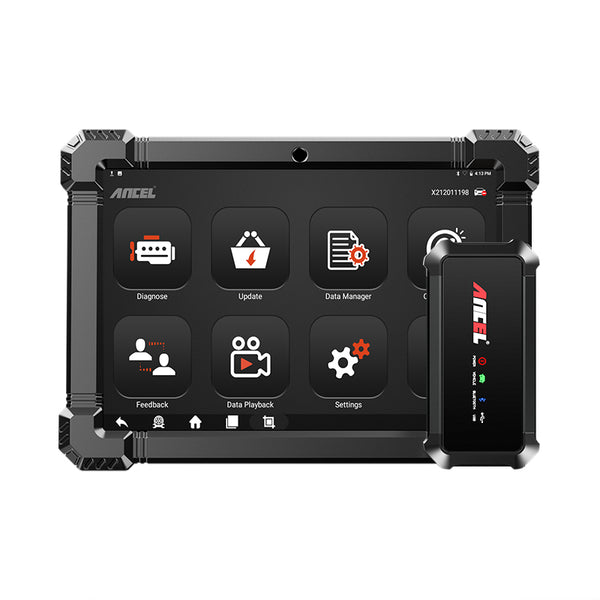

Start by using a diesel diagnostic tool like the ANCEL X7HD Heavy Duty Truck Diagnostic Tool. This full-system scanner is ideal for reading EGR-related fault codes on both cars and heavy-duty diesel trucks. It provides accurate DTCs (Diagnostic Trouble Codes), live data, and even supports DPF and EGR resets for supported models. Whether you're a DIYer or a professional mechanic, ANCEL scanners save time and help prevent misdiagnosis.
- Inspect Connections
You should check all the vacuum lines and electrical connections related to the EGR system. Loose or damaged connections can cause performance problems. So, you can repair or replace them as needed. - Check Vacuum Supply
Test the vacuum supply hose with the help of a vacuum gauge. Lack of a vacuum in the right RPM means blockage or fault in the EGR system. - Test Valve Movement
Watch the EGR valve stem when the engine is running. The valve should open and close as needed based on engine conditions. If it doesn’t move then there may be a problem. - Inspect and Clean for Carbon
Check for deposits by removing the EGR valve if you feel that there is a carbon buildup. Removal of the dirt from the valve and the accompanying components sometimes brings back the normal operating status. many ANCEL diagnostic tools offer reset and adaptation functions to recalibrate the EGR system after cleaning — an essential step to restore full performance. - Seek Professional Hel
If the problem does not go away after troubleshooting, then, it is important that one takes his or her car to a mechanic. They have the tools and the know-how for diagnostics and fixing of problems like EGR.
