ANCEL X7HD Heavy Duty Truck Diagnostic Tool Full System DPF ABS ECU Reset Scanner

$899.99 USD $674.99 USD 25 %

Ausführung: US Version

US Version
EU-Version
UK-Version

paypalvisavisaelectronmastermaestrodiners clubjcbdiscoveramerican expressunionpayshopify payapple paygoogle payklarnabancontactideal
Order in the next [totalHours] hours %M minutes to get it between and

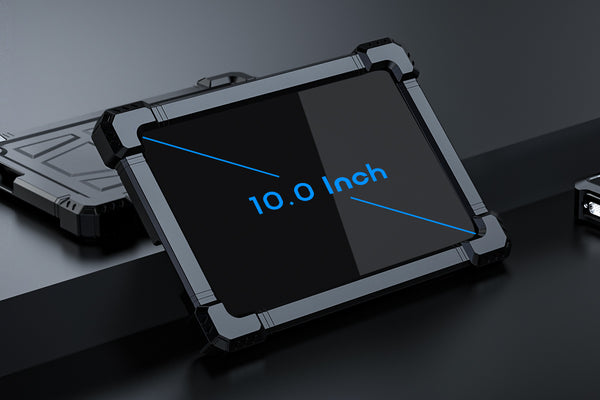

    10.1" Touchscreen

    Legible and Responsive Tablet

    10.1" Touchscreen

    Legible and Responsive Tablet

    BIG VCI

    Wireless VCI or Lined USB Connection

    BIG VCI

    Wireless VCI or Lined USB Connection

    Android 10.0 OS

    With a High-end Processor for Fast Operation

    Android 10.0 OS

    With a High-end Processor for Fast Operation

    Active Test

    Make the Module Perform Specific Tests

    Active Test

    Make the Module Perform Specific Tests

    DPF Regeneration

    Including DPF Reset, DPF Regeneration, etc.

    DPF Regeneration

    Including DPF Reset, DPF Regeneration, etc.

    Full OBDII System

    In-depth Diagnosis of All Available Modules

    Full OBDII System

    In-depth Diagnosis of All Available Modules

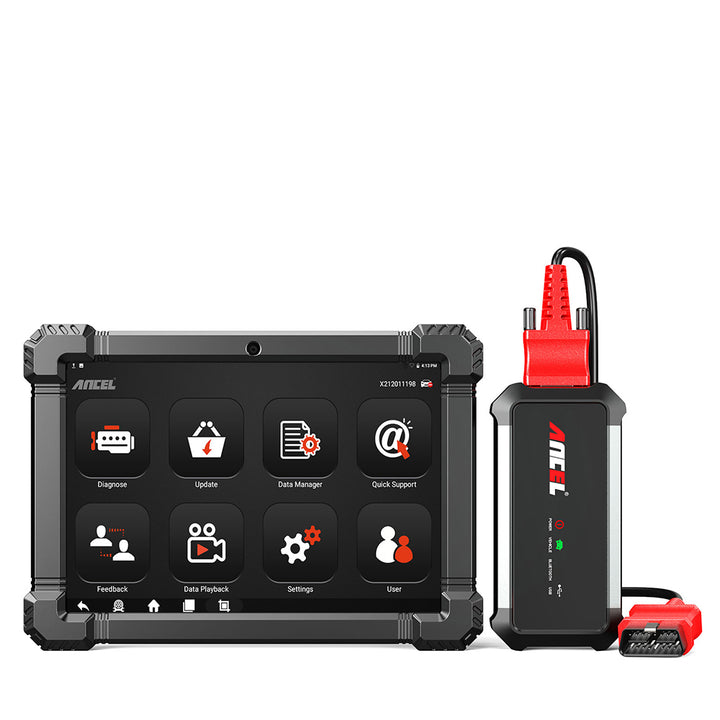

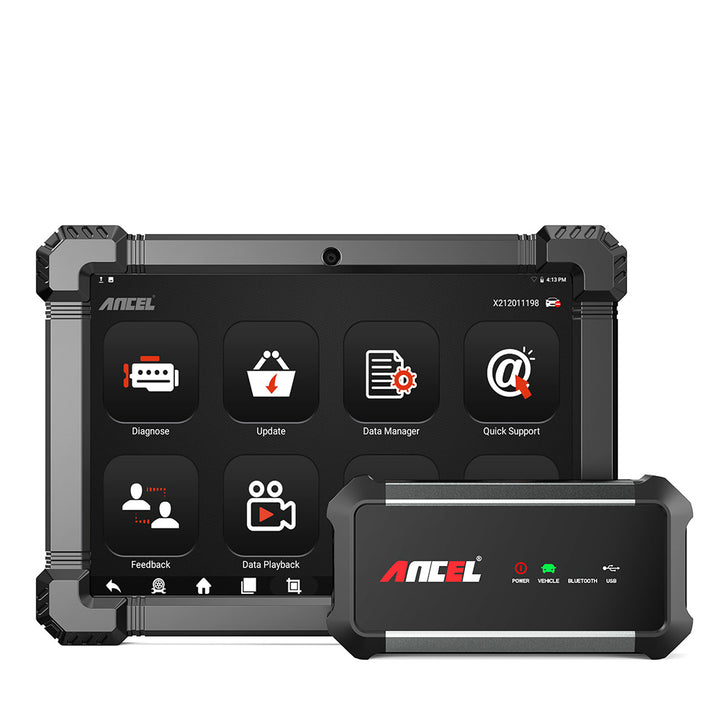

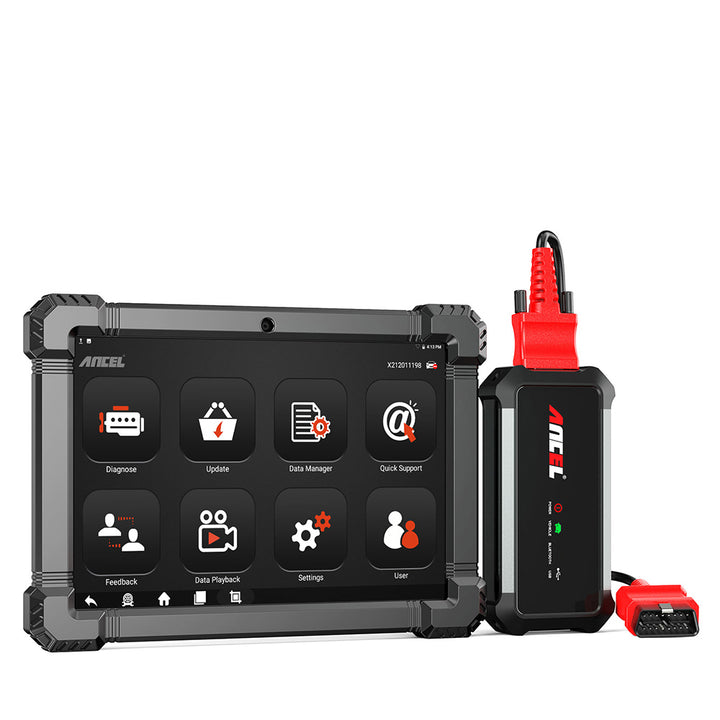

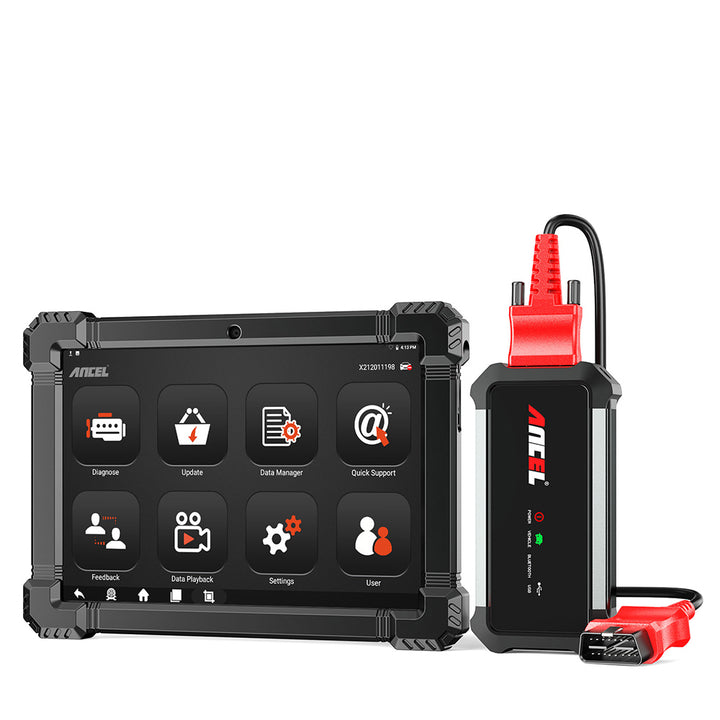

    X7HD Truck Diagnostic Tool

    X7HD truck scanner is a new generation Android-based total diagnostic tool for heavy-duty trucks and commercial vehicles and machinery. With the 10-inch highly qualified industrial diagnostic tablet, in the software, more trucks, busses, and machinery from home and abroad with comprehensive diagnostic functions. With a new diagnosis experience and cost performance, it can be a better choice for all users.

    Software Advantages

    1. Professional diagnostic service system with all brands, systems, and functions.

    2. Comprehensive vehicle coverage for heavy trucks.

    3. Complete function capability including DTC, DTC freeze Info, Live data, Actuation test and Special function, and professional data replay, data stream analysis for automobile repacking.

    4. Support one-key update/logging/Test report/Feedback/function list via wireless.

    5. Support online & offline DTC query.

    6. Beautiful UI interface, easy operation, good experience.
    Perfectly compatible with Android 10 and above.

    X7HD Function Coverage

    Basic Function:
    1. Read ECU Info
    2. Read Fault Code: Read DTCs, Clear DTCs.
    3. Clear learning value
    4. Read Live Data: Data Stream Waveform Display
    5. Actuations
    6. Read freeze frame data
    7. Data Manage: Can manage Vehicle App, Testing pictures, etc. Users can make effective management of files and storage.
    8. System Auto Detected:Automatically identify the vehicle model and information.

    Resetting:
    1. Basic Reset
    2. Oil change
    3. Cylinder shut off test
    4. Cylinder compression test
    5. Cylinder balancing test
    6. EGR Solenoid Test (EGR-exhaust gas recirculation)
    7. EGR Pulse Ratio Test
    8. DPF Manual Forced (DPF-diesel particulate filter)
    9. DPF Normal Regeneration
    10. ABS bleeding (ABS-antilock brake system)

    All System Diagnostic

    Systems Coverage
    1. Engine system
    2. Body control system
    3. SRS system Airbag
    4. ABS-anti-lock brake system
    5. Instrument System
    6. Transmission system
    7. Brake control system
    8. Unit pump system
    9. Common Rail System
    10. Electronical control system
    11. Natural gas system
    12. Tail gas after-treatment system
    13. Air-conditioning system
    14. ATA-Anti-theft alarm system
    15. AHA-Auxiliary heating system air-to-air
    16. AUS-Audio system
    17. BMS-Brake Management System
    18. Bosch DENOX AdBlue System
    19. Break control system
    20. BWS-Preparation system
    21. CCS-Climate control system
    22. Comfort/assistance/safety systems
    23. Compressed Air Reserve system
    24. CSS-Collision safety system
    25. CTS-Clock and Time System
    26. EBS-Electronically Controlled Brake System
    27. EHLA-Electrohydraulic steering system
    28. EMS-Engine Management System
    29. Fuel system
    30. Exhaust Pressure Adjustment systems
    31. ECM-Engine Control Module
    32. Speed control systems
    33. Turbo Control systems
    * Menu & Compatibility Vary by Truck/Machinery Make, Model & Mde Year

    Professional ABS Bleeding & DPF regeneration

    ABS Bleeding

    X7-HD heavy-duty truck scanner activate motor to do exhaust air in ABS Automatically,save your energy and time, make your drive more safe, worth thousands of pounds.


    DPF regeneration

    DPF Reset and Do DPF Regeneration Automatically, make sure your truck meet emission requirement.


    15+ Hot Reset Service

    Other Advantages of X7HD

    OBD2 Automatic Programming

    1. Level calibration,
    2. Idle speed learning,
    3. Idle speed Adjustment,
    4. Camshaft timing control learning, etc.

    Automatic Diagnosis Tool for Coding

    1. Control unit adaptations
    2. Injector codes
    3. Read/Write VIN
    4. Road speed limit optional vehicle speed set.

    Other Advantages of X7HD

    1. Covered truck brands (34 types) and models
    2. Supports J1939, J1708 and J1587 protocols.Routine diagnosis for almost all cars, mini vans and light duty vehicle from 1996 to newest utilizing ISO9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, SAE-1850 PWM, UDS, K/L lines, High speed CAN, Middle speed CAN, Low speed CAN and Single wire CAN
    3. Supply USB and WIFI connection for the VCI.
    4. Very easy to use with touch screen control and intuitive control in the windows.
    5. The hardware runs stably with built-in over voltage protection to avoid hardware damage due to voltage instability and good operation in low and high temperature environments.
    6. Compared to the repair shop, compared with similar products, cost-effective

    2 Years Free Update

    Support update online, you will always have the latest bug fixes, the newly vehicles support list, newly added parameters and functionality at your fingertips.

    Free upgrade within two years from activation. After expiration, the optional upgrade packages and fees are $199/year, $318/two years, and $398/three years.

    If you choose not to pay the upgrade fee after the software expires, the device will still function normally. However, you will not be able to upgrade the software to access the latest updates for vehicle models and features released by the manufacturer.

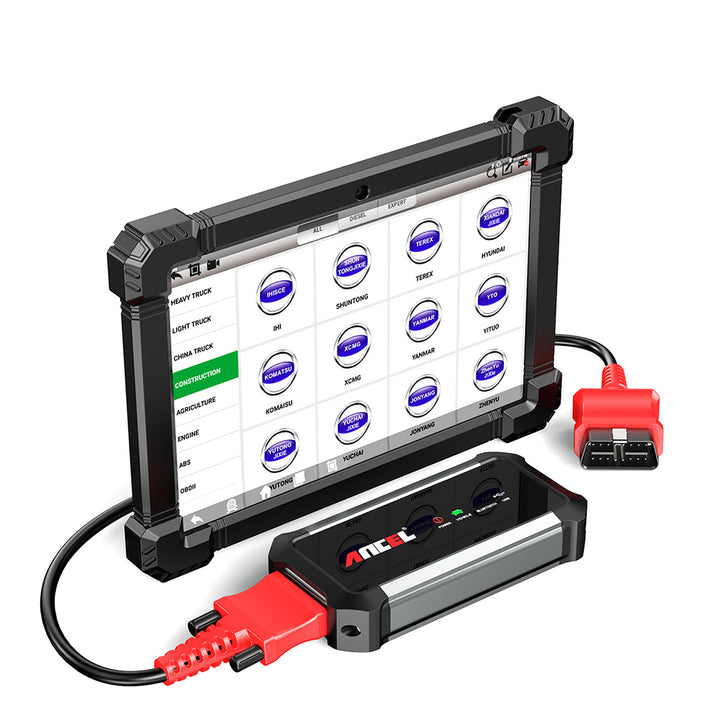

    Wide Vehicle Coverage

    HEAVY TRUCK:
    For HINO, For Hyundai Heavy Truck, For KIA Heavy Truck, FOR Benz, For DAF, For MAN, For ERF, For Scania, For Fuso, For UD, For Isuzu, For Iveco, For Renault, For Volvo, For Mack, For Detroit, For Freightliner, For Paccar, For Kenworth, For Navistar, For International, For Maxxforce, For Astra, For Bremach, For Ashok_Leyland, For TATA, For Mitsubishi

    *The compatibility of X7HD with ISUZU is relatively poor. We recommend that vehicle owners inquire with customer service before making a purchase.

    LIGHT TRUCK:
    For Ford, For GM, For Toyota, For Great Wall

    *The X7HD may not be compatible with Chrysler vehicles, such as a Dodge Ram. We recommend that you contact customer service before purchasing.

    CHINA TRUCK:
    For FAW, For DONG FENG, For SINO TRUCK, For SHACMAN, For FOTON, For JAC, For XCMG, For HONGYAN TRUCK, For C & C Truck, For JMC

    CONSTRUCTION:
    For Caterpillar, For Atlas, For Chengdu Kobelco, For Dasin, For Doosan, For Foton Lovol, For Fuzhou Sanyuan, For Fuwa, For Black Cat, For HENGTE, For Yellow River, For Kato, For Case, For Lishide, For Liebherr, For Lugong, For Lonking, For SHANGHAI Pengpu, For Hitachi, For Sany, For Xgma, For Shantui, For Sunward, For Bobcat, For IHI, For SHUNTONG, For Terex, For HYUNDAI, For KOMATSU, For XCMG, For YANMAR, For YITUO, For YUTONG, For YUCHAI, For JONYANG, For ZHENYU, For ZHONGLIAN, For ZOOMLION, For ZHONGYOU, For TAKEUCHI, For SUMITOMO

    AGRICULTURE:
    John Deere

    ENGINE:
    For Cummins, For Caterpillar, For Doosan, For BOSCH, For Weichai, For Yuchai, For Xichai, For Yunnei Power, For Changchai,For Yangchai, For Quanchai, For Perkins, For Chaochai, For Xinchai

    ABS:
    For Bosch, For ALLISON, For BENDIX, For WABCO, For DELPHI, For DENSO, For VOITH

    OBDII:
    For Light-Duty/Car, and Heavy-Duty

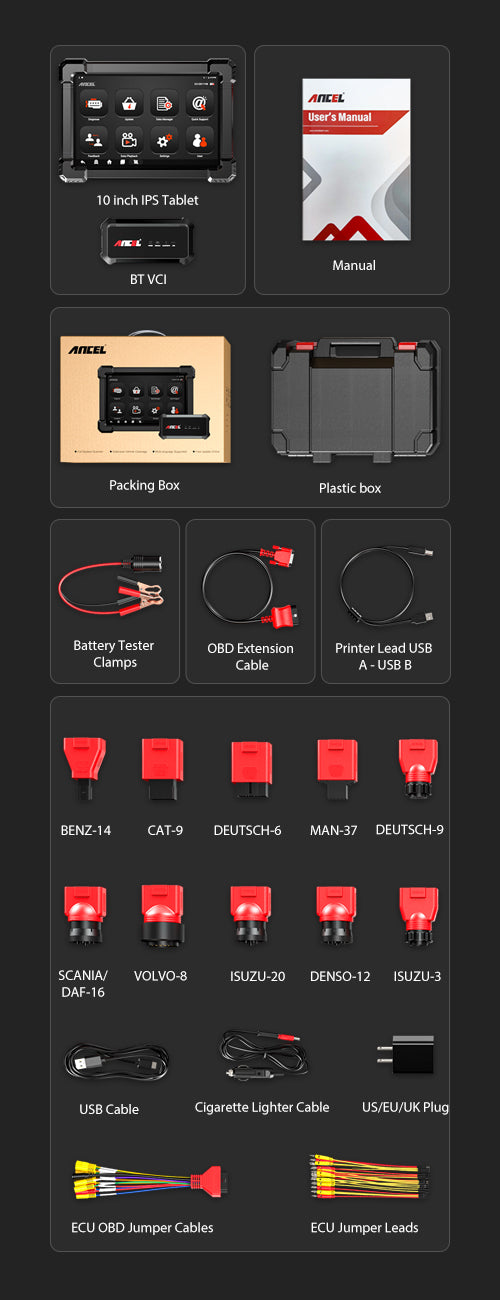

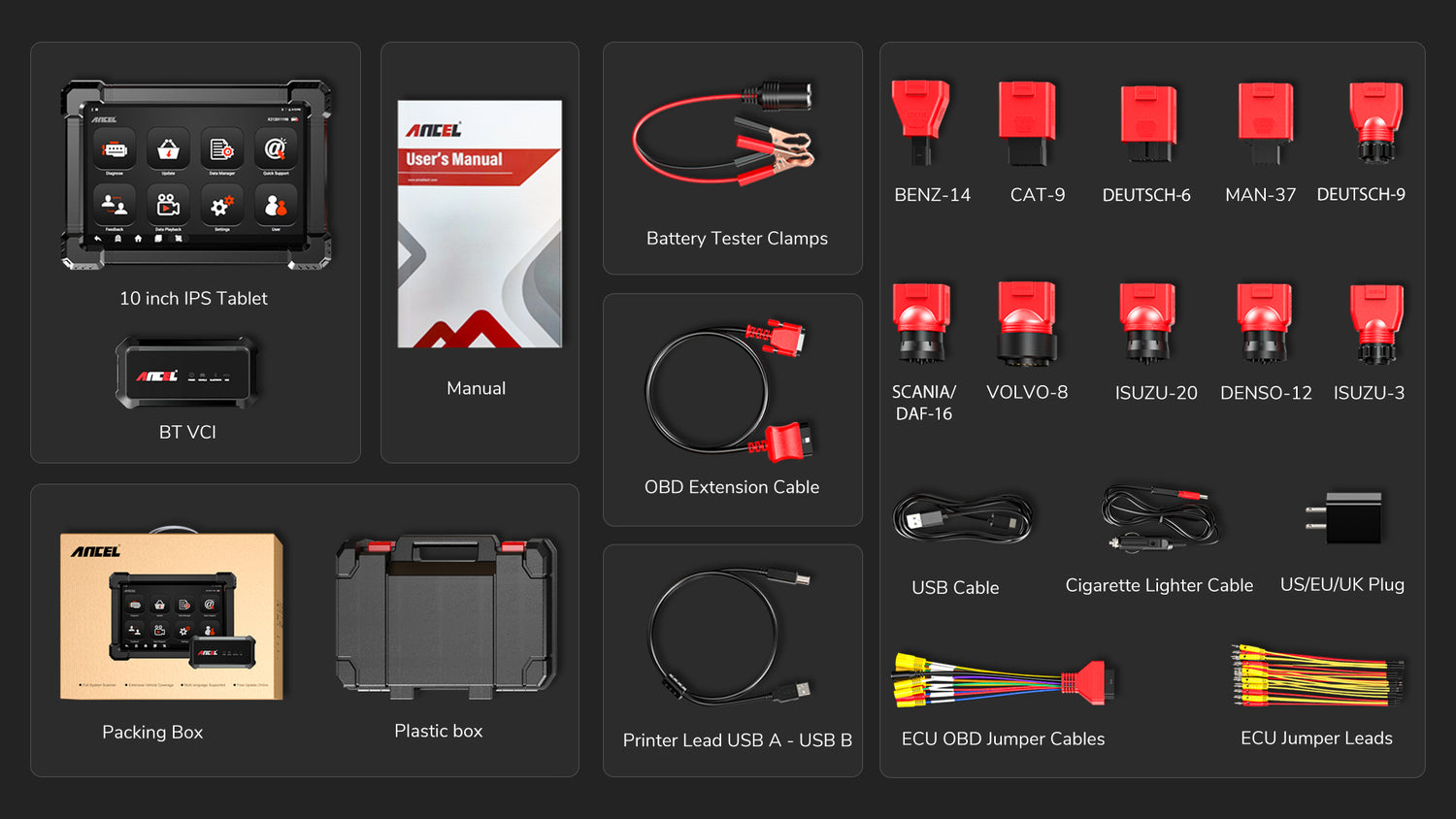

    What's in the box?

    ANCEL X7HD Scanner x 1
    DIESEL-9 x 1
    CAT-9 x 1
    OBD-R16 x 1
    BENZ-14 x 1
    Bluetooth VCI Connector x 1
    Battery Tester Clamps x 1
    ECU OBD Jumper Cables x 1
    ECU Jumper Leads x 1
    USB Cable x 1
    US Power Plug x 1
    Protective Carrying Case x 1

    ISUZU-3 x 1
    ISUZU-20 x 1
    CUMMINS-6 x 1
    VOLVO-8 x 1
    DENSO-12 x 1
    MAN-37 x 1
    Cigarette Lighter Cable x 1
    Printer Lead USB A - USB B x 1
    OBD Extension Cable x 1
    EU Plug x 1
    UK Power Plug x 1
    User Manual x 1

    Customer Reviews

    Based on 52 reviews
    65%
    (34)
    17%
    (9)
    6%
    (3)
    2%
    (1)
    10%
    (5)
    P
    Phylis M
    I was skeptical, but I'm impressed!

    I had a code 1922 which is a permanent code and can't just clear unless you have a special scan tool. I was able to to reset dpf and force a regen. Everything worked out fine, I also changed ecm parameters which I didn't expect I could do unless I had an Insite. To say the least, I'm very impressed.

    A
    Andy
    Does everything as advertised

    Only thing I did not like it did not have DPF functions for the max force 2013 motors wont allow force regen. But Im sure this can be addressed in future software updates.

    K
    Kendry
    Excelente herramienta

    Todo es perfecto con el

    D
    Darrel Chang
    One fancy scanner that does it ALL!

    I have only tested this scanner on a John Deer 410K backhoe.
    It was easy to hook up to the machine, fairly easy to navigate the tablet.
    The machine had error codes for emission issues, read the codes fine and was able to force a regen on the machine.

    C
    Christopher

    Liked how fast it runs the programs and scans really quick
