ANCEL AS100 Obd2 Car Diagnostic Tool OBD 2 Automotive Scanner

Name: ANCEL AS100 Obd2 Car Diagnostic Tool OBD 2 Automotive Scanner
Brand: ANCEL
SKU: BC00543_2
Price: 39.99 USD
Availability: InStock

$39.99 USD

Order in the next [totalHours] hours %M minutes to get it between and

One-Click to Diagnostic

Easy to Use

Full OBD2 Functions

1000+ models Support

Full OBD2 Funtions

1.Reading Codes Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.View Freeze Frame Data Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
6.Read Vehicle Information Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
7.Turn off engine warning light
8.Smoke emission Check
9.Engine EPC Check

Covered 1000+ Models

American (USA) Car

Compatible with Standard OBD2 Cars from 1996 to Now: For Chrysler, for Ford, for GM, for Jeep

European Car

Compatible with Standard OBD2 Cars from 2003 to Now: For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar

France Car after 2006

For Citroen，for Fiat，for Renault，for Peugeot Not Support for Renault Clio 2/Megane/Dacia Logan

Japanese Car

Compatible with Standard OBD2 Cars from 2005 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota

Chinese Car

Compatible with Standard OBD2 Cars from 2008 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

Protocols Supported by AS100

AS100 Support Engine full OBDII/EOBD diagnostic functions and support OBD2 protocols car, such as:

1. SAE J1850 PWM(41.6Kbaud)

2. SAE J1850 VPW(10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP(fast init,10.4 Kbaud)

6. ISO15765-4 CAN(11bit ID,500 Kbaud)

7. ISO15765-4 CAN(29bit ID,500 Kbaud)

8. ISO15765-4 CAN(11bit ID,250 Kbaud)

9. ISO15765-4 CAN(29bit ID,250 Kbaud)

Attention

NOTE:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don't have Special Functions,Like ABS Reset,Airbag Reset...

NOTE:
Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years, Not Support Opel Corsa c 2004 1.3 CDTI Nor Support vw golf 4 2002

Multiple Language Supports

Support 9 languages: English, Russian, Deutsch, Spanish, French, Italian, Dutch, Suomi, Polish

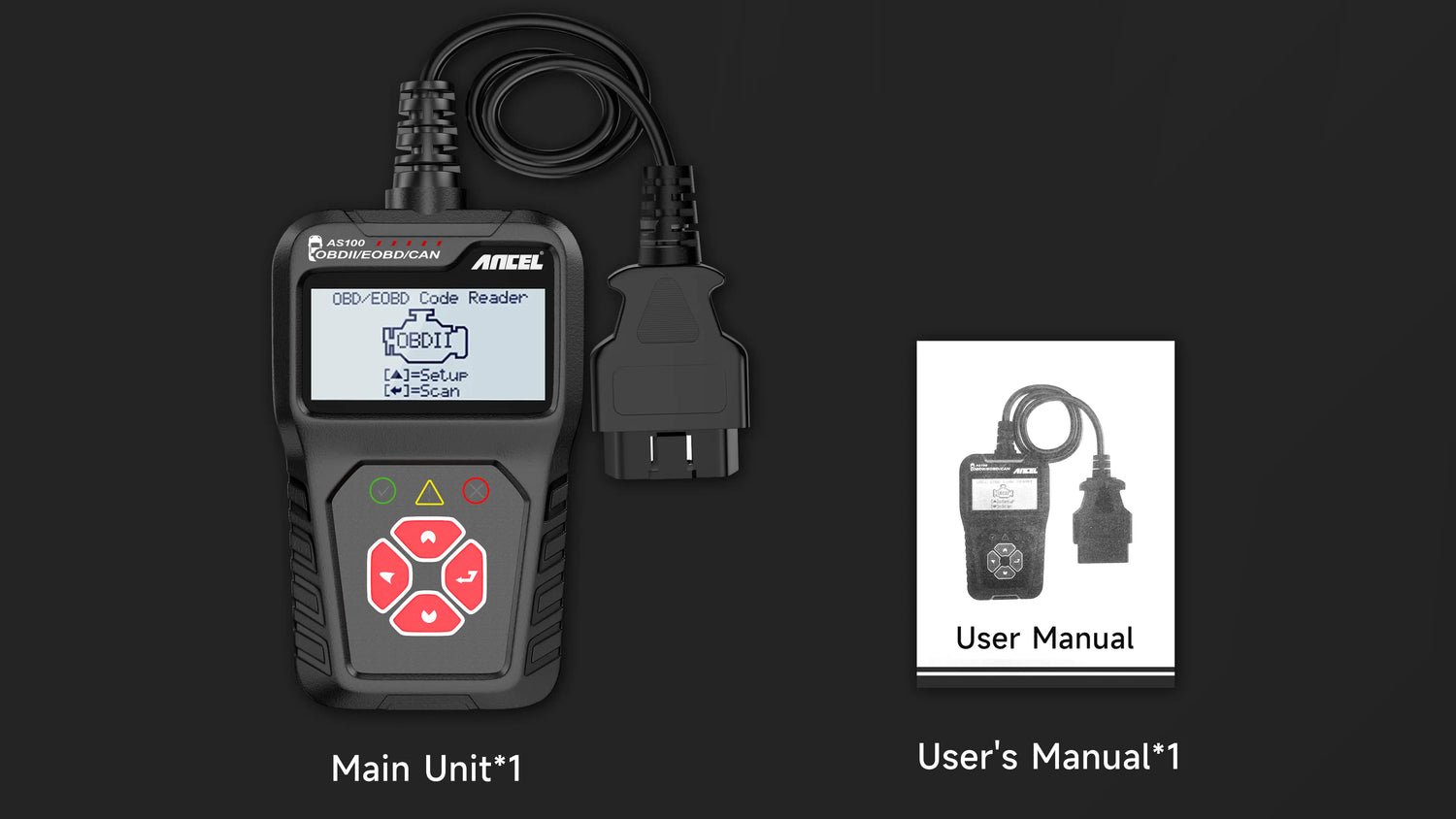

What's in the box?

AS100 Diagnostic Tool x 1

User Manual x 1
