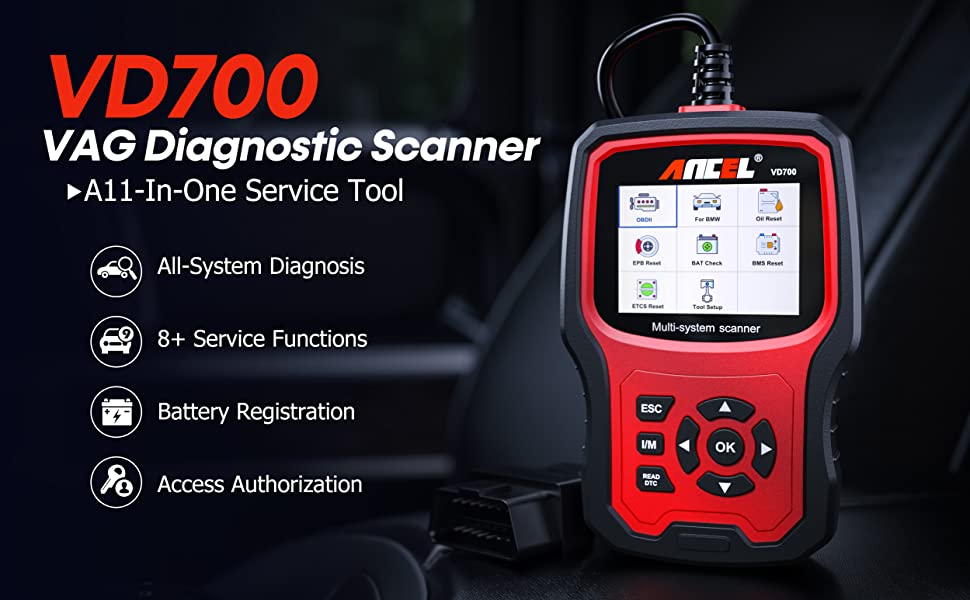

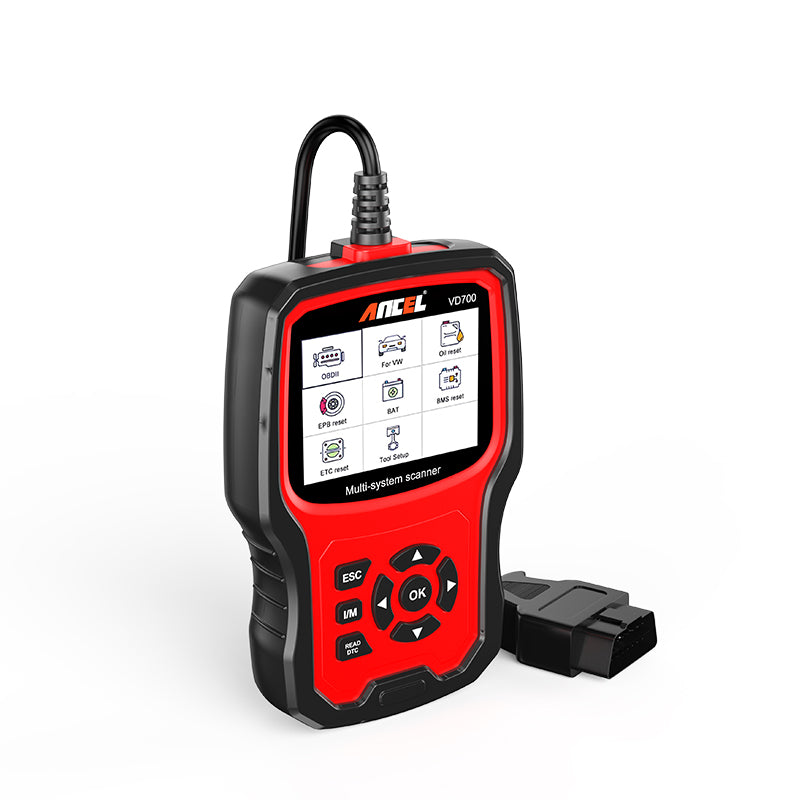

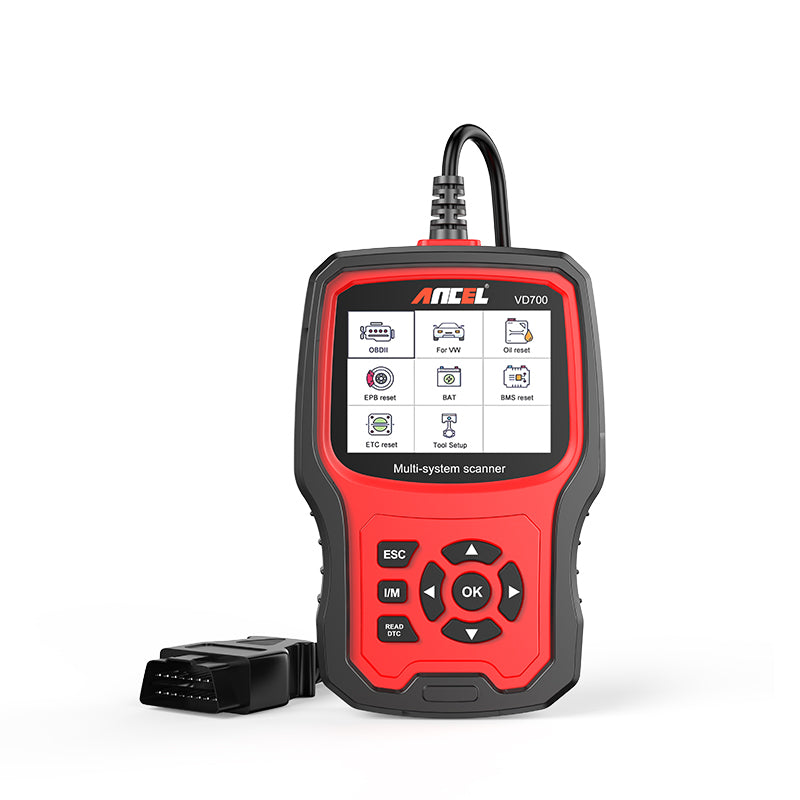

ANCEL VD700 All System OBD2 Scanner with 8 Special Functions for VAG Vehicles Diagnosis Code Reader
ANCEL VD700 is an upgraded version of the ANCEL VD500 OBD II scanner. It compatibles for Volkswagen Group vehicles (VW / AUDI / SKODA / SEAT), it can do all systems diagnose (such as...
ANCEL VD700 is an upgraded version of the ANCEL VD500 OBD II scanner. It compatibles for Volkswagen Group vehicles (VW / AUDI / SKODA / SEAT), it can do all systems diagnose (such as ABS, Transmission, SAS, SRS, ESP, TPMS and other systems) and special functions (such as throttle position adaption, brake pad reset, TPMS reset, steering angle learning, oil service reset, injector learning, Battery Registration and DPF reset, etc) compatible for VAG vehicles, but it only can diagnose engine system and OBD 6 modes for 16 pin Non-VAG vehicles sold in the US after 1996.

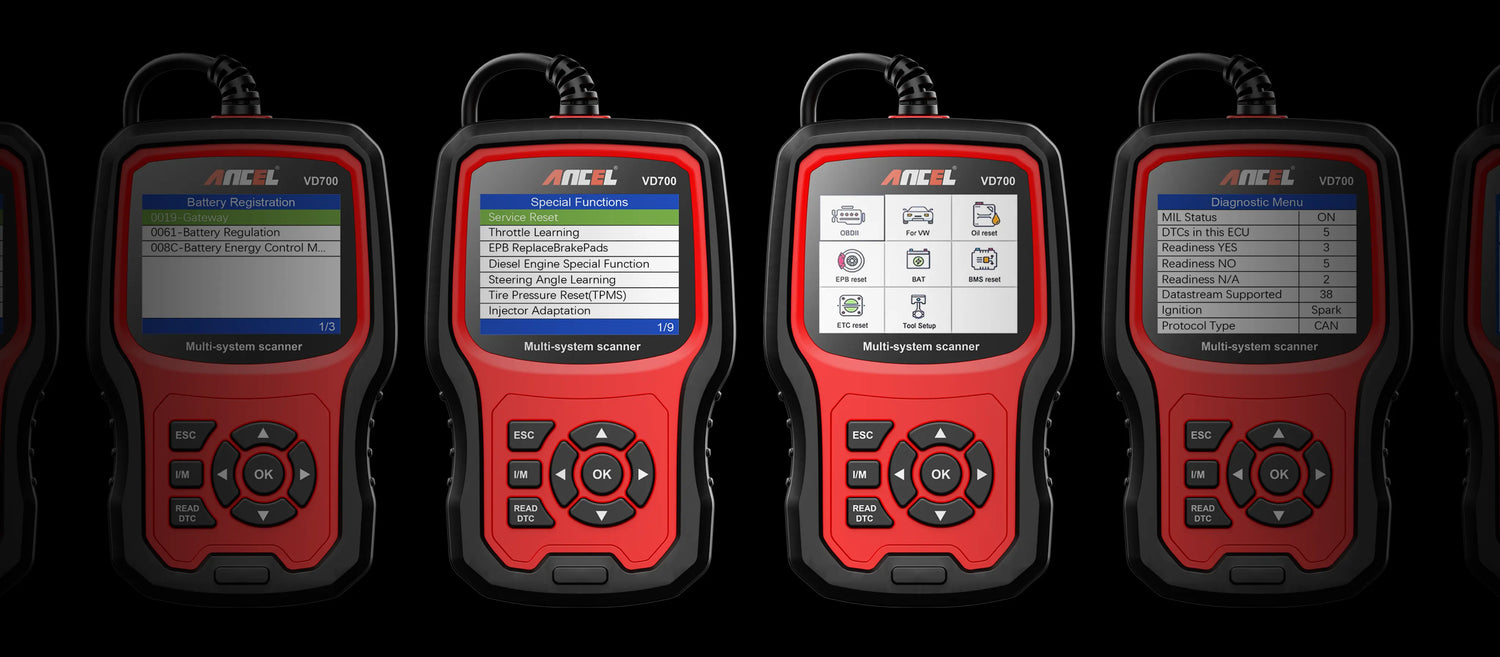

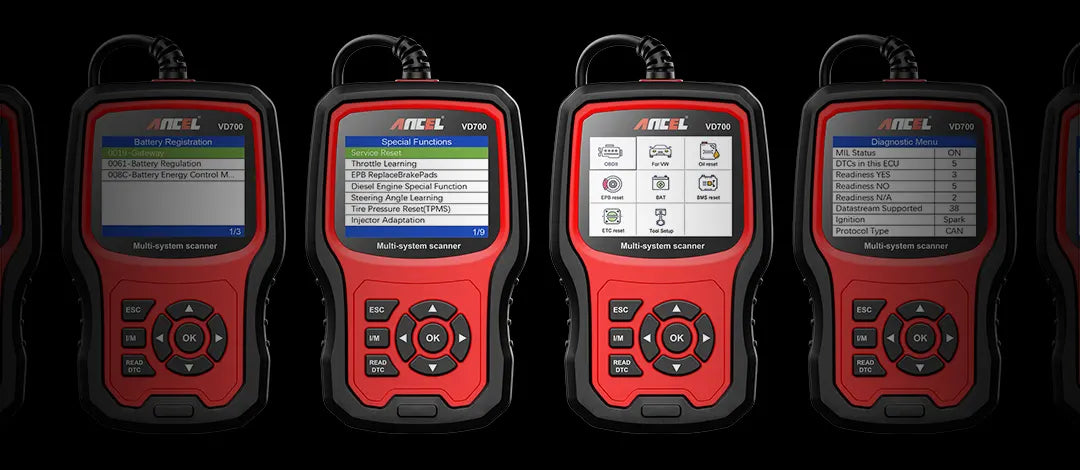

It comes with an advanced STM CPU, a 2 color UI theme 2.8-inch screen, 11 display languages and a special feedback function. It can diagnose your vehicle in merely seconds due to its automatic vehicle model identification function. We also provide lifetime free updates to make sure it always has the latest fault code database.
Why choose the ANCEL VD700?
Support 12V cars and light trucks (non-electric) manufactured in 1996 or later that are OBD II-compliant with 16-Pin OBD II protocols (J1850 VPM, J1850PWM, ISO9141, KWP 2000 and CAN)

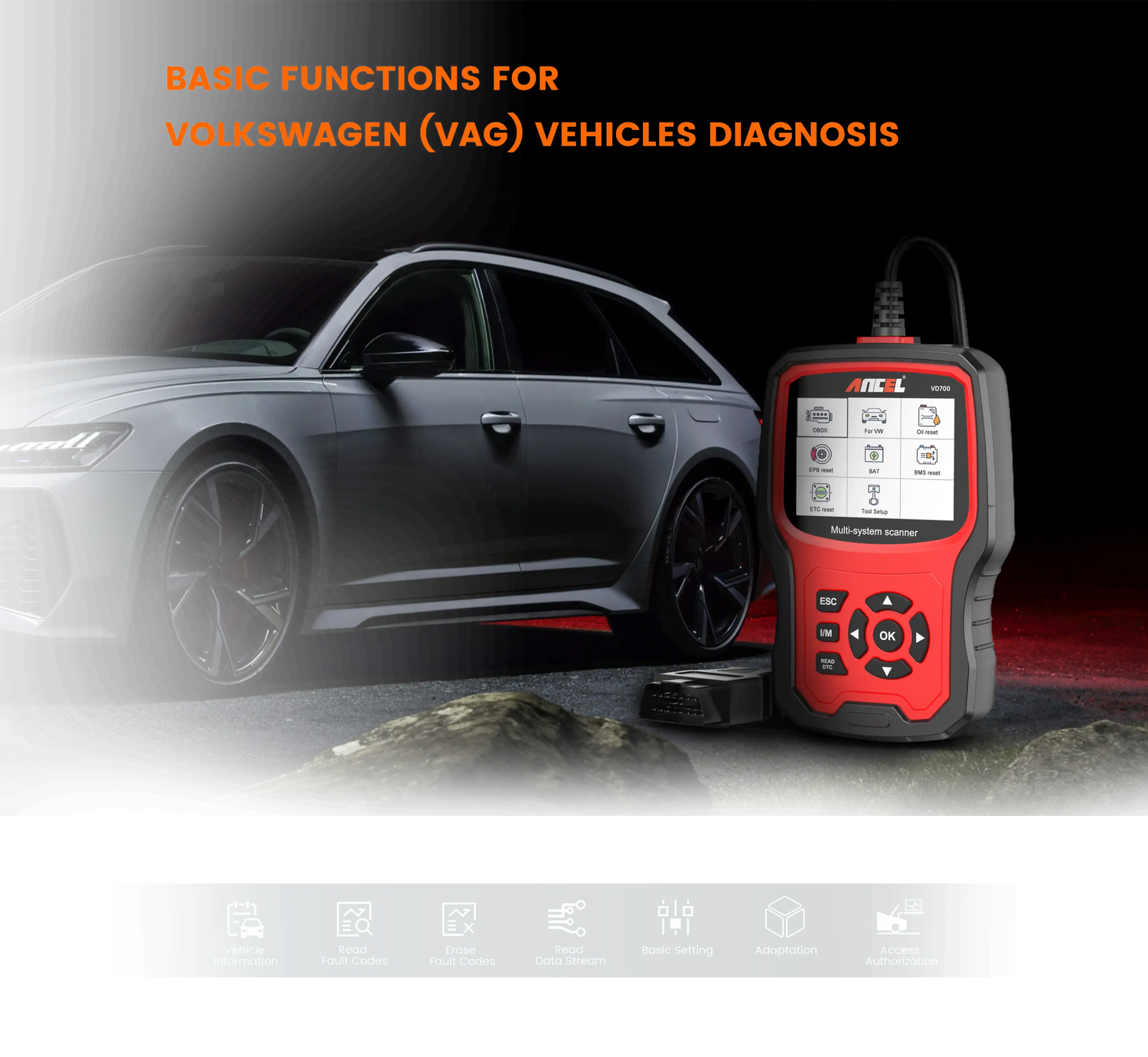

- More Basic functions for Volkswagen (VAG) vehicles: Engine System, SRS(Airbag), TPMS, ABS, SAS, Transmission System, ESP System, Battery System and Battery Test function, Immobilizer System, Retrieves VIN Information and Read data stream.
- More Special functions for Volkswagen (VAG) vehicles: Throttle Position Adaption, Electrical Park Brake (EPB) Reset, TPMS Reset, Steering Angle Sensor Calibration, Oil Service Reset and Injector Learning, Battery Registration and DPF Regeneration, Access Authorization.

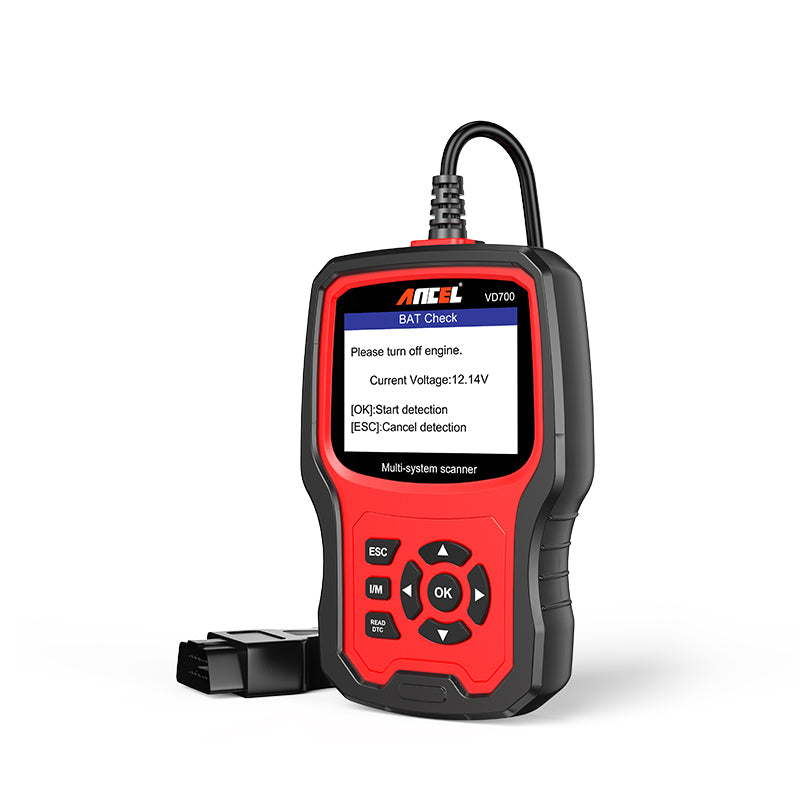

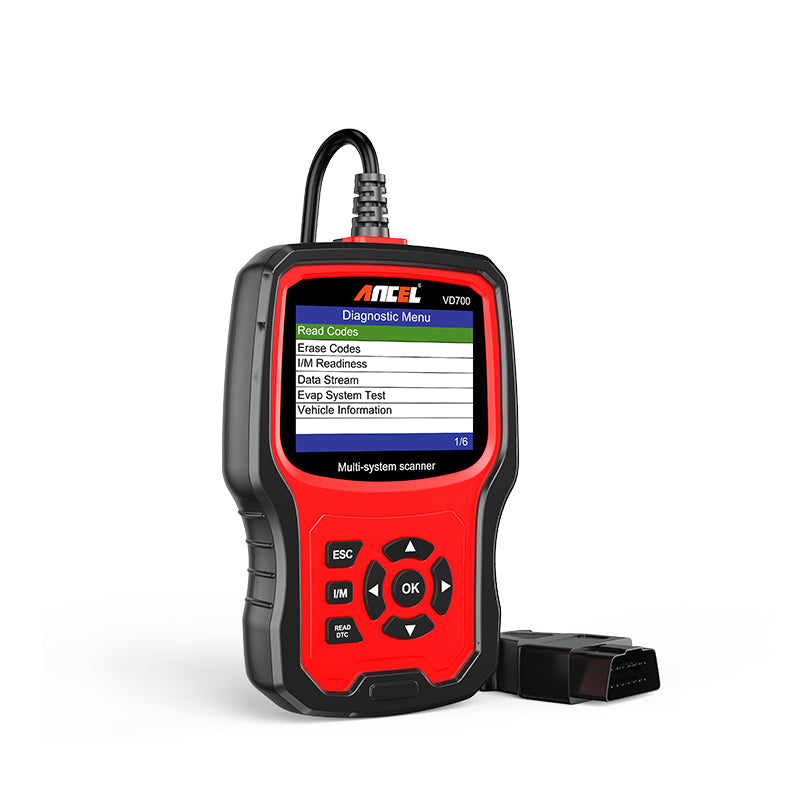

- OBD 6 modes and other functions for OBD II vehicles: Read and Erase Codes, Retrieves VIN Information, Test EVAP system, Read Data Stream, I/M Readiness, Battery Test Function.

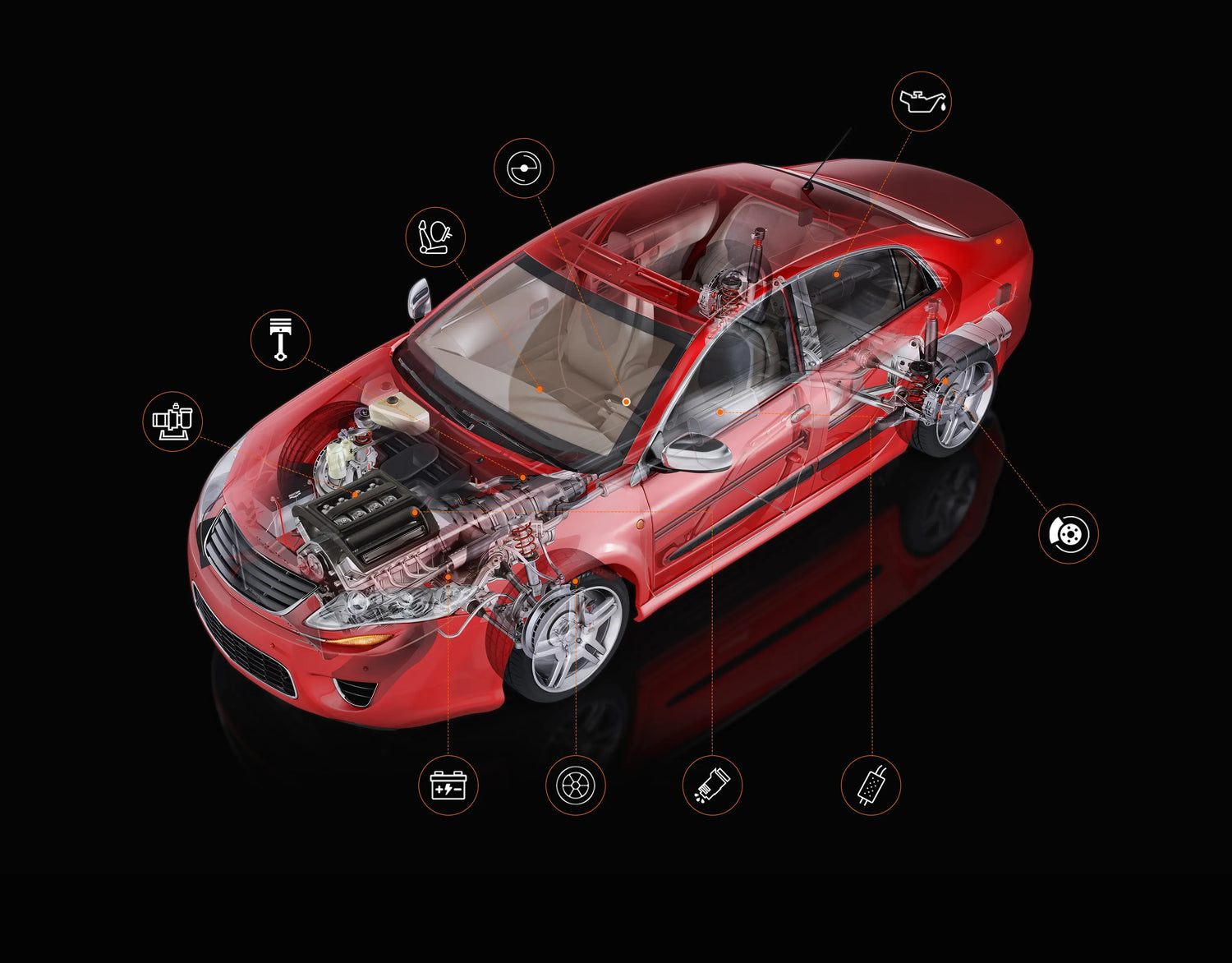

ANCEL VD700 Supports 8+ Most Commonly Used Maintenance Functions
Electrical Park Brake (EPB) Reset: EPB(Electrical Parking Brake) is a technology that realizes parking brake by electronic control. VD700 is an essential tool required to release rear electric parking brake unit when replacing the rear pads or discs so that the caliper piston can be moved back. It can also clear codes and turn off the EPB light when it’s done. ( Note: For more EPB steps, please refer to product guides and documents.)
TPMS Reset: You can use VD700 to clear the codes and turn off the TPMS warning light after you replaces the tire. ( Note: Some TP20 protocol vehicles don’t support this function, please use the vehicle’s reset button to reset the TPMS warning light.)
Throttle position Adaption: If these problems occur: the engine may be stalling or misfiring, poor engine performance, lack of power, transmission (gear) may not be shifting correctly, it means that you need to get the throttle position sensor (TPS) inspected. After that, the trouble codes will need to be cleared. VD700 can clear codes and reset the TPS. ( Note: All protocols are supported, but the KWP1281, KWP2000, and TP16 protocols require manual operation.)
Oil Service Reset: When you want to reset your oil service after you change the oil or simply want to reset your vehicle inspection warning light(please make sure your vehicle is in good condition), this is the device you need.
Steering Angle Sensor Calibration: You can use VD700 to read the fault codes, perform the sensor calibration if needed, and clear the codes when you done. ( Note: 1. Set the steering wheel to the center point and align the front wheels straight ahead before you do the SAS reset. 2. If the SAS MIL light illuminates on the dashboard after you reset the SAS and the codes can't be cleared, then you need to turn the ignition on, pulling the wheel as followed: its the left end, its the right to end and then back to the center point. )
Injector Learning: Once you have replaced the car injector, you will need to write a new injector code to inform the ECU how much compensation is required to achieve the optimum in lowering emissions and provide smooth running. VD700 can help you complete this process.

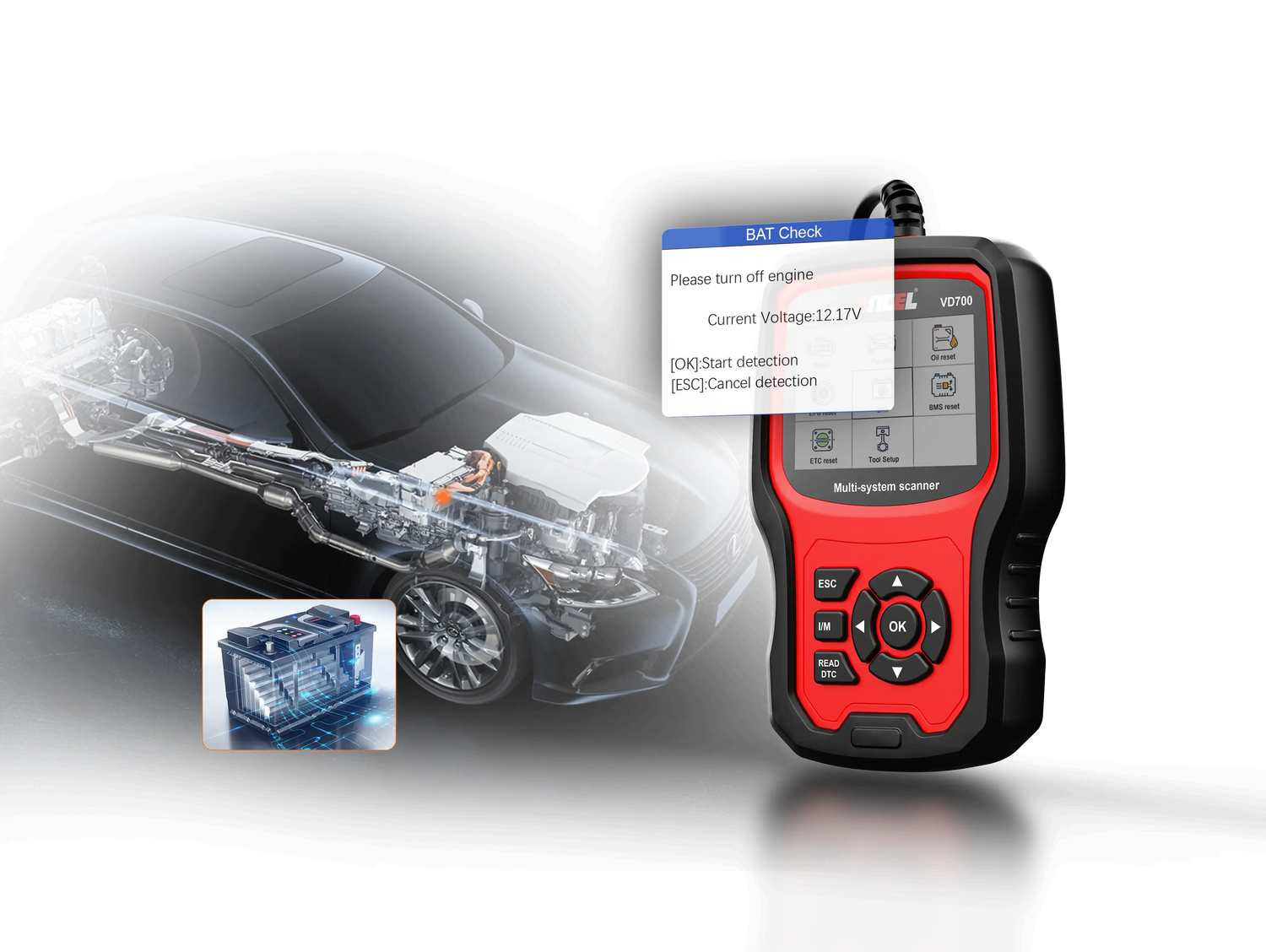

Battery Registration: Re-match the control module and motoring sensor, clear original low battery information. After replacing the battery, you need to register, please select the corresponding battery capacity, brand and serial number.
DPF Regeneration: The most common reasons for DPF failures are: Short journeys where the engine doesn't reach optimum operating temperature. Clogged EGR Valve increasing diesel soot passed to the DPF. Faulty fuel injectors send too much fuel to the air/fuel mixture. VD700 will perform a forced regeneration, turn off the DPF light and reset ECU after the filter has been replaced, and reset the additive light after topping up.

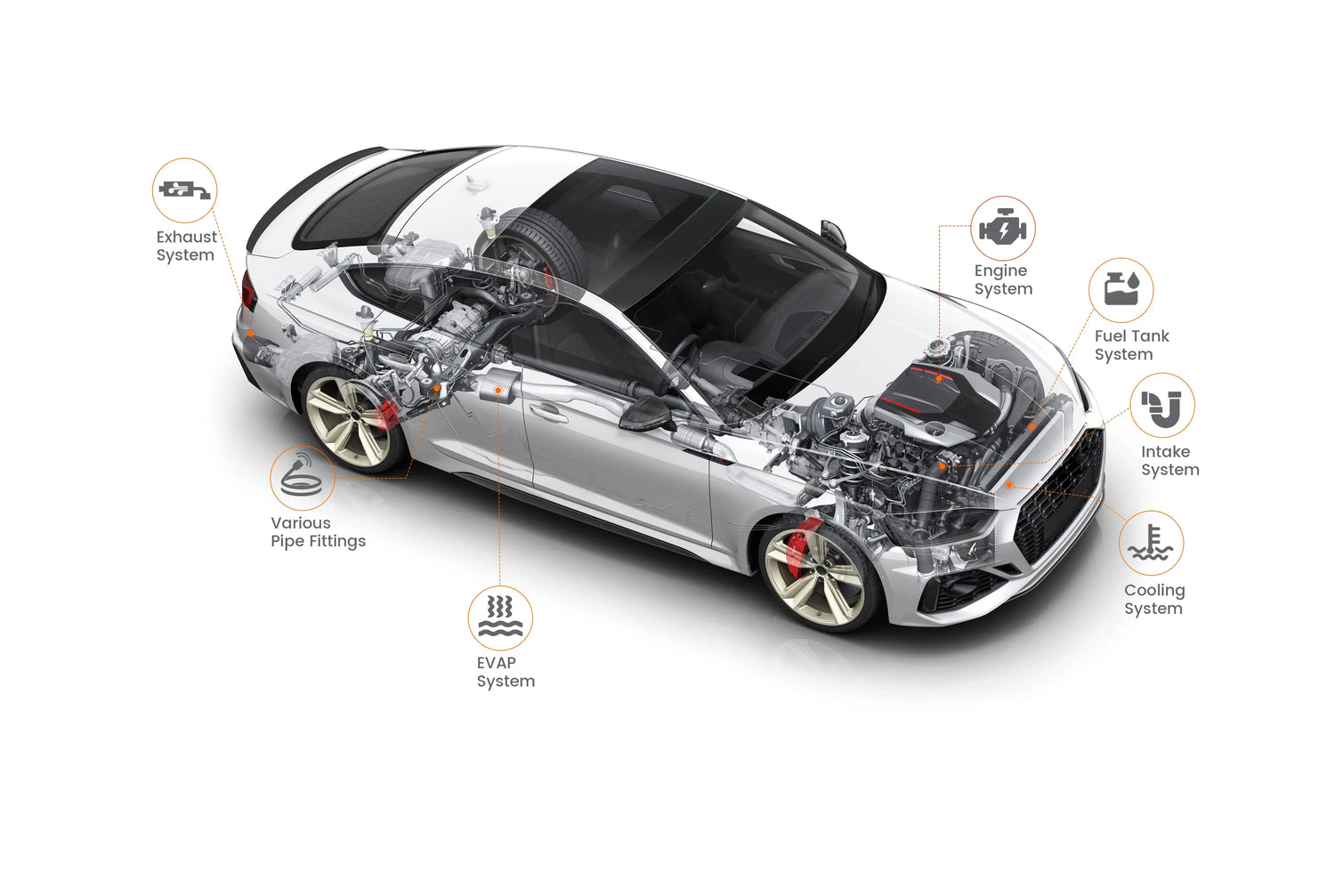

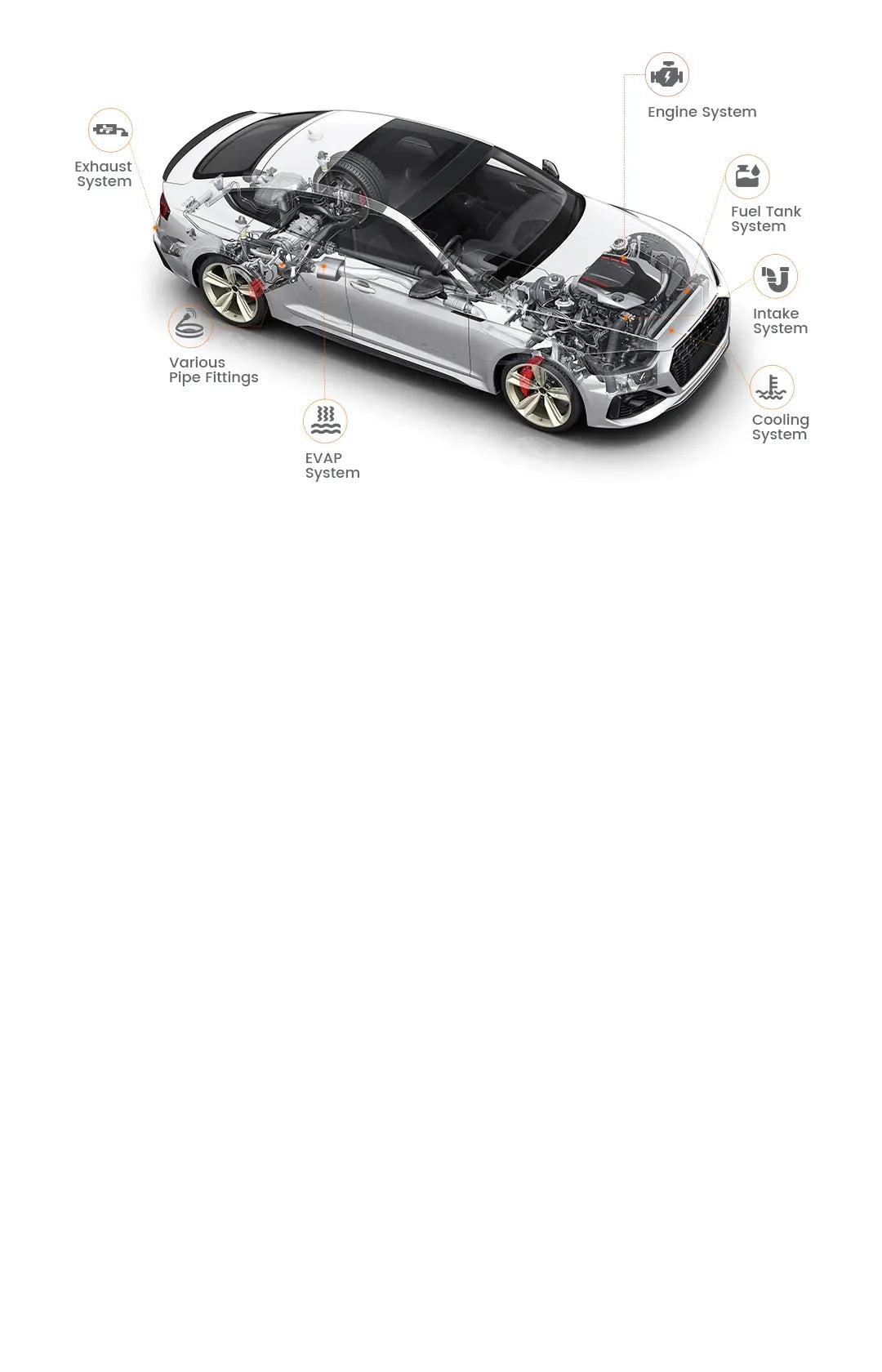

VD700 can do Full System Diagnose for VAG cars and Retrieves VIN Info:
Engine
Auto transmission
ABS brake
Auto HVAC
Center electronic system
Airbags
Steering wheel
Instrument
Immobilizer
Navigation
Radio
Diesel pump
Electric drive
Battery regulate
Battery charger
Parking brake
Steering angle
Suspension alert
Sound system
Chassis control
Tire pressure
Active steering
Door electric system, drive/pass/rear left/rear right
Slide door, right/left
Automatic light
HAVC Heating, Ventilation and Air Conditioning
Air Condition Clutch
Etc full system diagnose
Support Language
English, French, Spanish, German, Russian, Swedish, Portuguese, Finnish, Norwegian, Denish

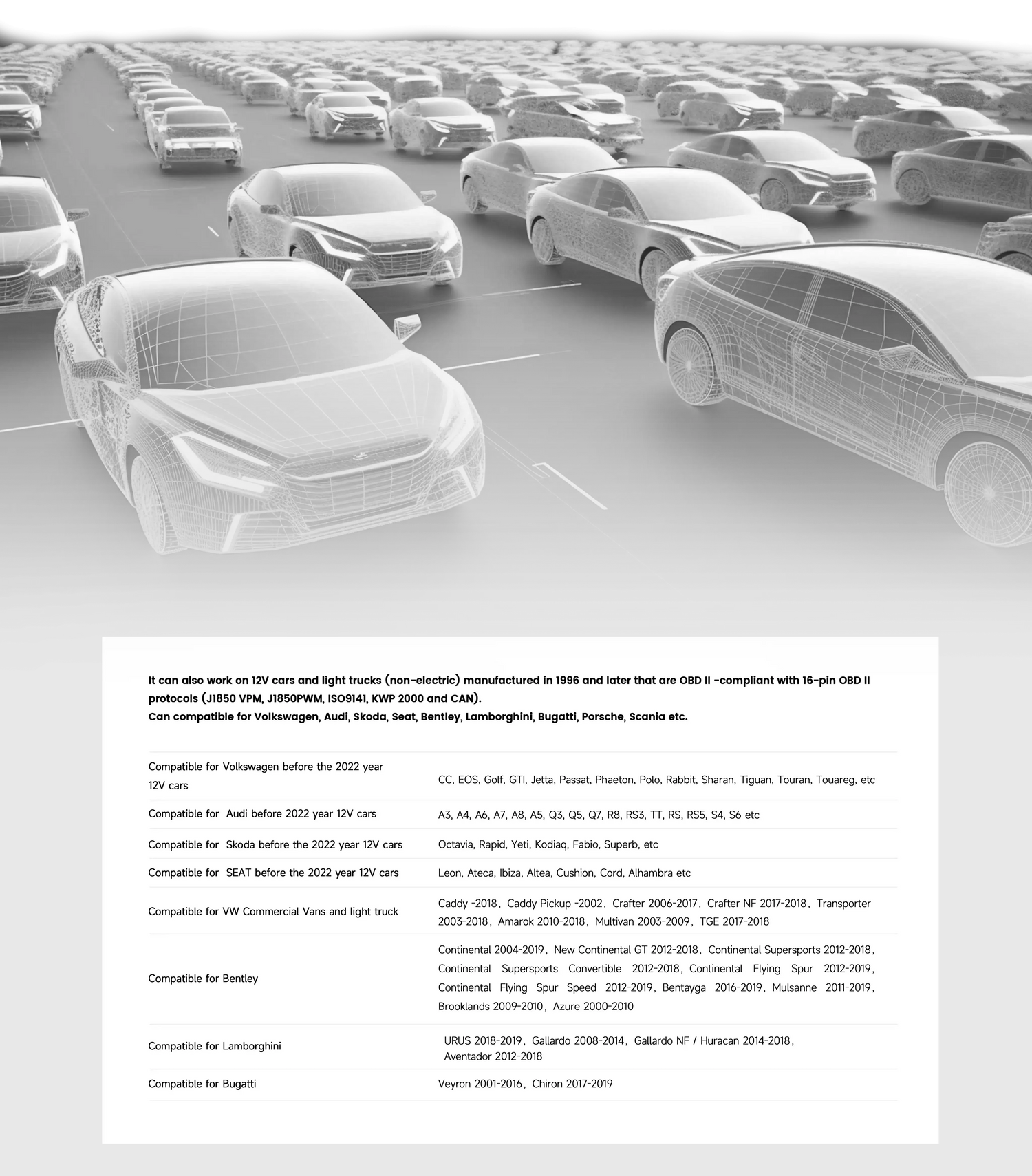

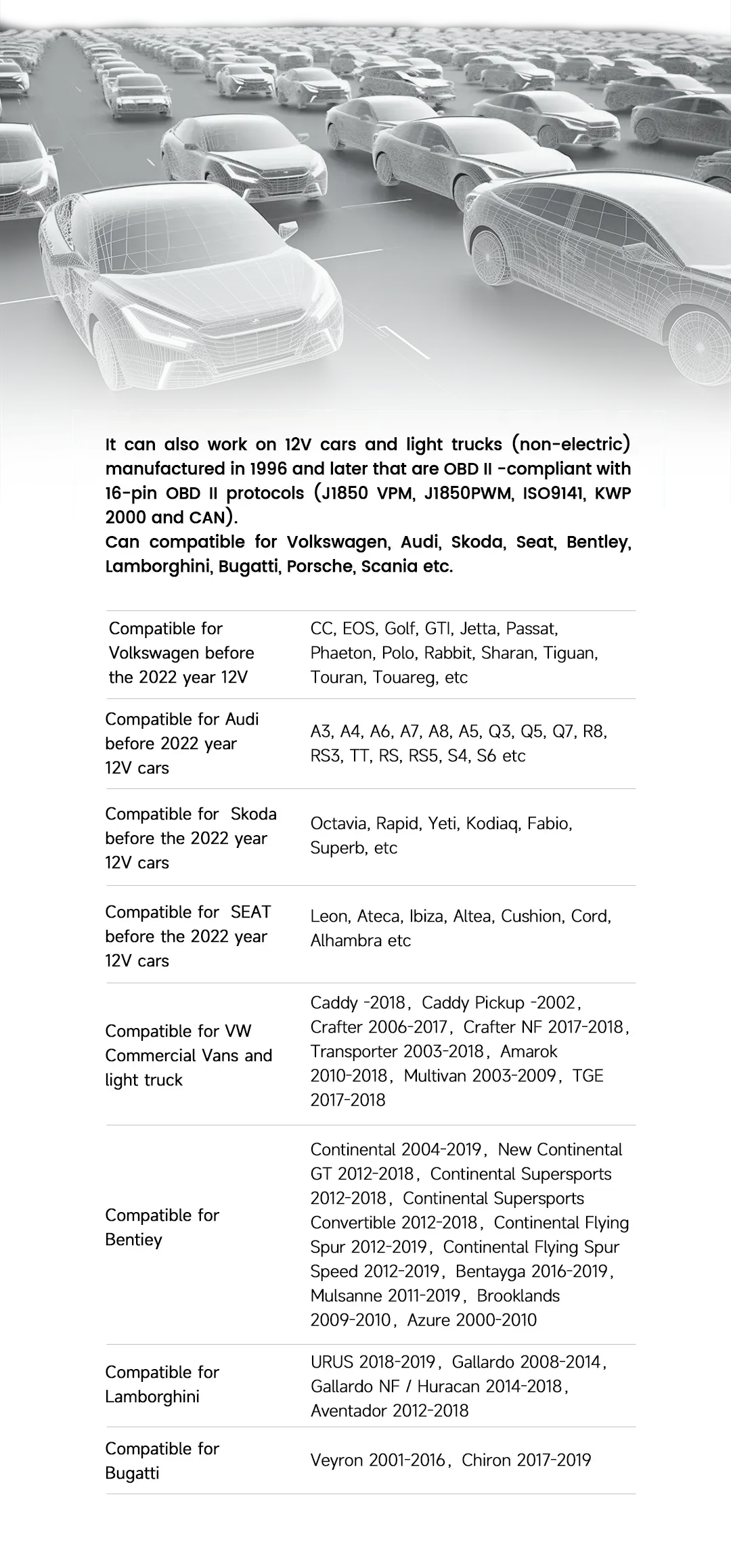

Coverage List
Compatible for Volkswagen before the 2022 year 12V cars: CC, EOS, Golf, GTI, Jetta, Passat, Phaeton, Polo, Rabbit, Sharan, Tiguan, Touran, Touareg, etc
Compatible for Audi before 2022 year 12V cars: A3, A4, A6, A7, A8, A5, Q3, Q5, Q7, R8, RS3, TT, RS, RS5, S4, S6 etc
Compatible for Skoda before the 2022 year 12V cars: Octavia, Rapid, Yeti, Kodiaq, Fabio, Superb, etc
Compatible for SEAT before the 2022 year 12V cars: Leon, Ateca, Ibiza, Altea, Cushion, Cord, Alhambra etc
Compatible for VW Commercial Vans and light truck:
Caddy -2018
Caddy Pickup -2002
Crafter 2006-2017
Crafter NF 2017-2018
Transporter 2003-2018
Amarok 2010-2018
Multivan 2003-2009
TGE 2017-2018
Compatible for Bentley,
Continental 2004-2019
New Continental GT 2012-2018
Continental Supersports 2012-2018
Continental Supersports Convertible 2012-2018
Continental Flying Spur 2012-2019
Continental Flying Spur Speed 2012-2019
Bentayga 2016-2019
Mulsanne 2011-2019
Brooklands 2009-2010
Azure 2000-2010
Compatible for Lamborghini,
URUS 2018-2019
Gallardo 2008-2014
Gallardo NF / Huracan 2014-2018
Aventador 2012-2018
Compatible for Bugatti,
Veyron 2001-2016
Chiron 2017-2019

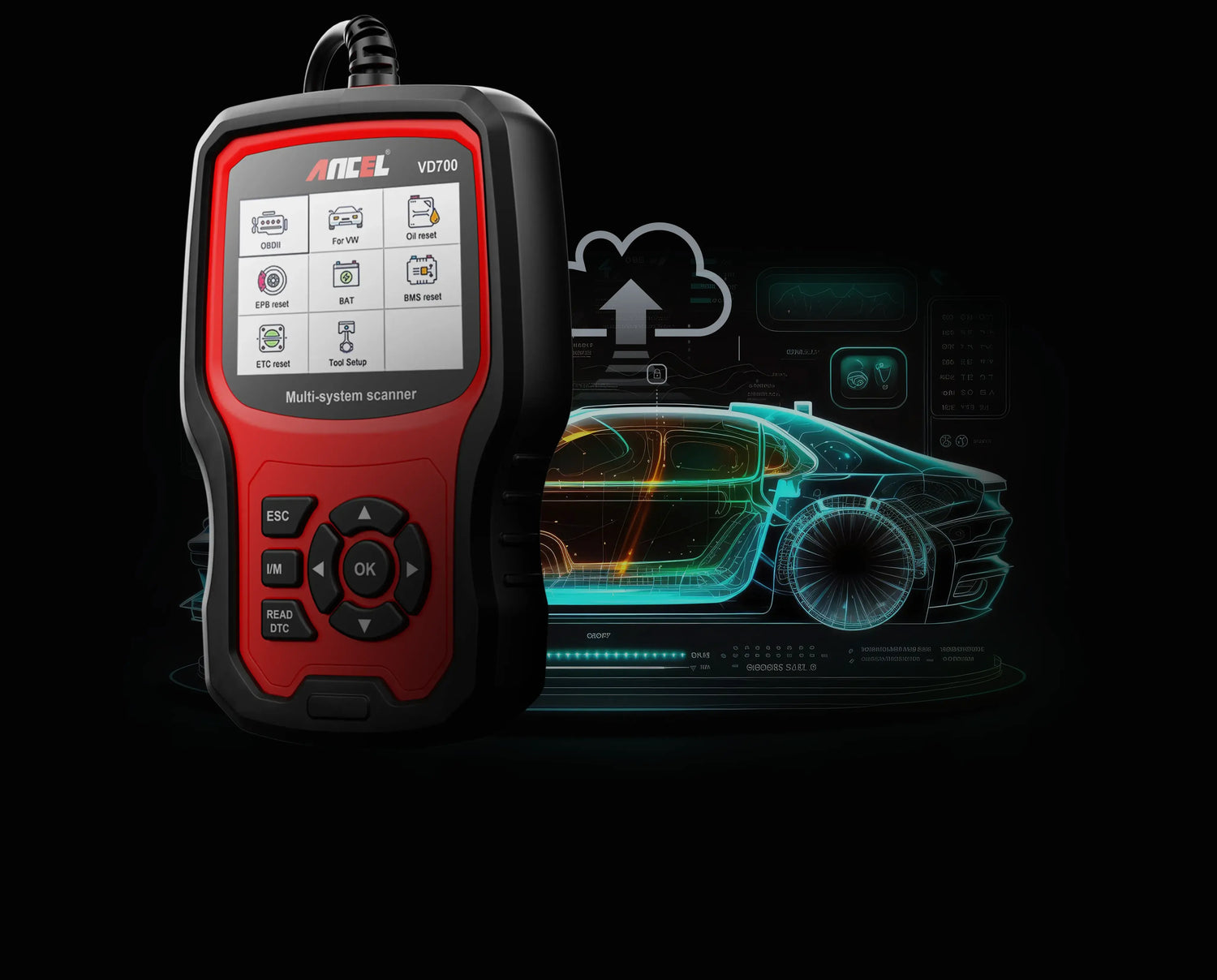

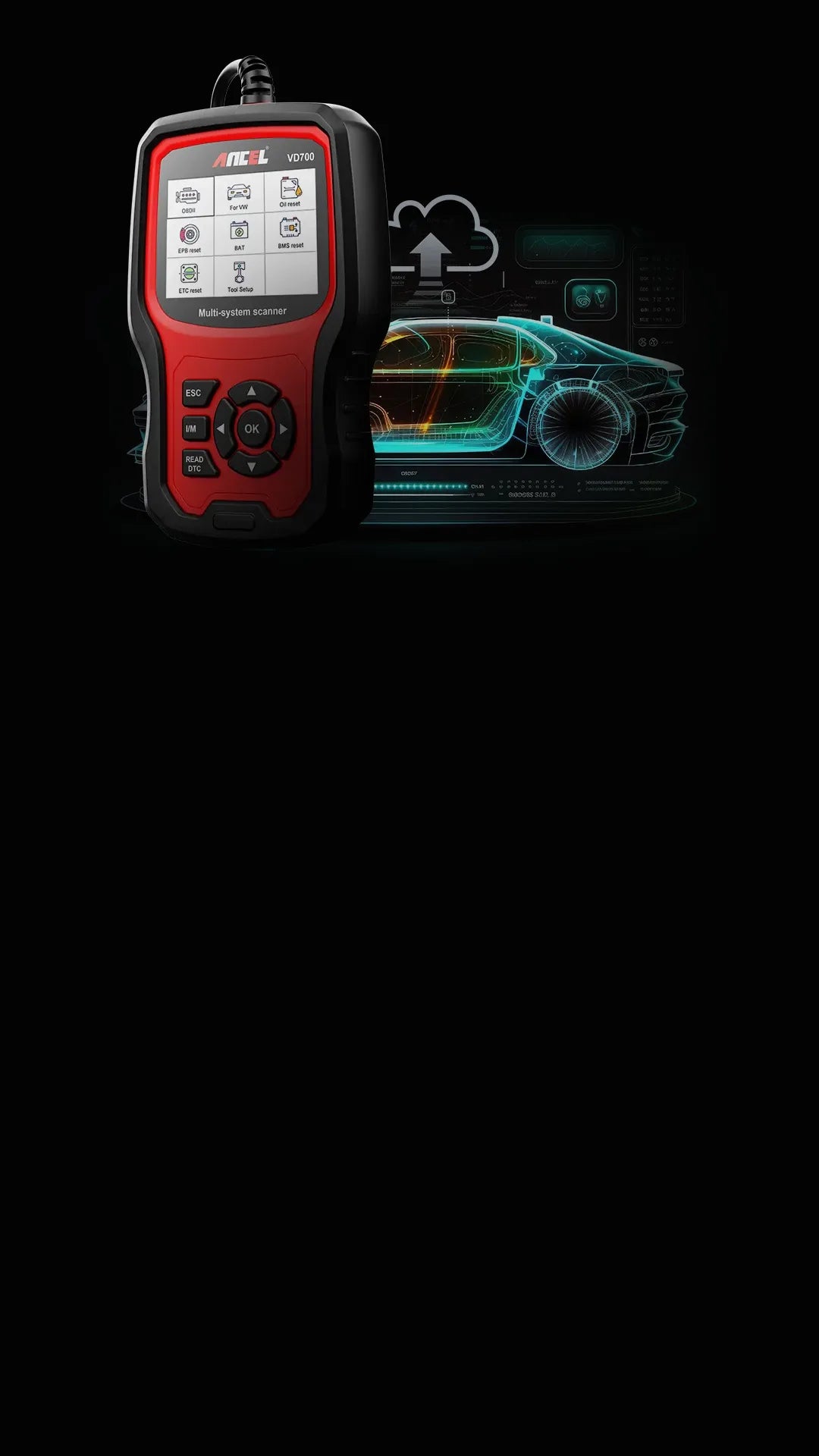

VD700 Supports Lifetime Free Update

QUESTIONS & ANSWERS
Ask a Question-
I need to reset the EPB for replace the plades witch scanner i need for a golf 7, 09/ 2017?
It can be supported if it is determined to be an electronic brake
-
I just purchased the VD700. Where can I check for software updates?
Here you can check the software updates: https://www.anceltech.com/product/detail?id=1166651578459877376
-
I need to diagnose and reset ABS code on a 2010 VW Jetta. VD500 or VD700?
ANCEL VD500 and ANCEL VD700 both can diagnose and reset ABS code on a 2010 VW Jetta
-
Which one will reset the idle speed on th
Tell me the brand,model,release year of your car please,I will check for you
