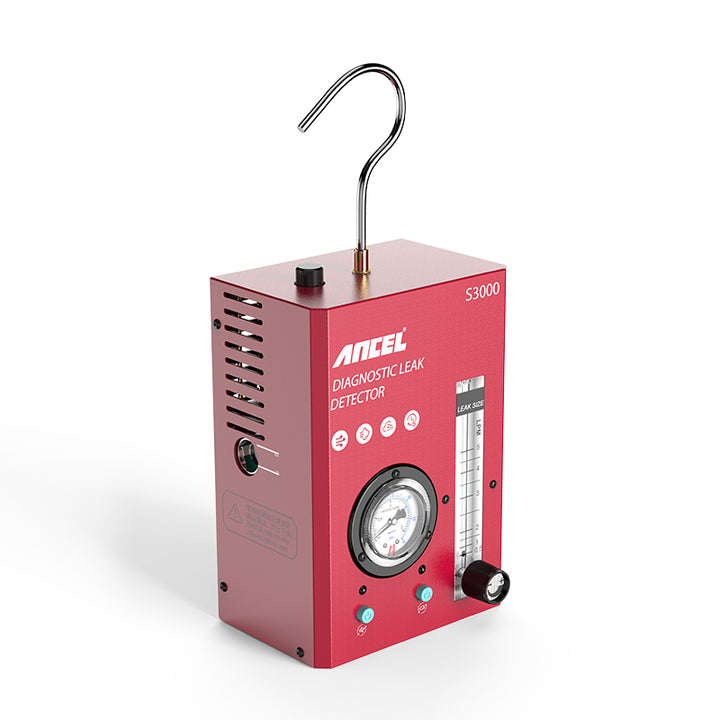

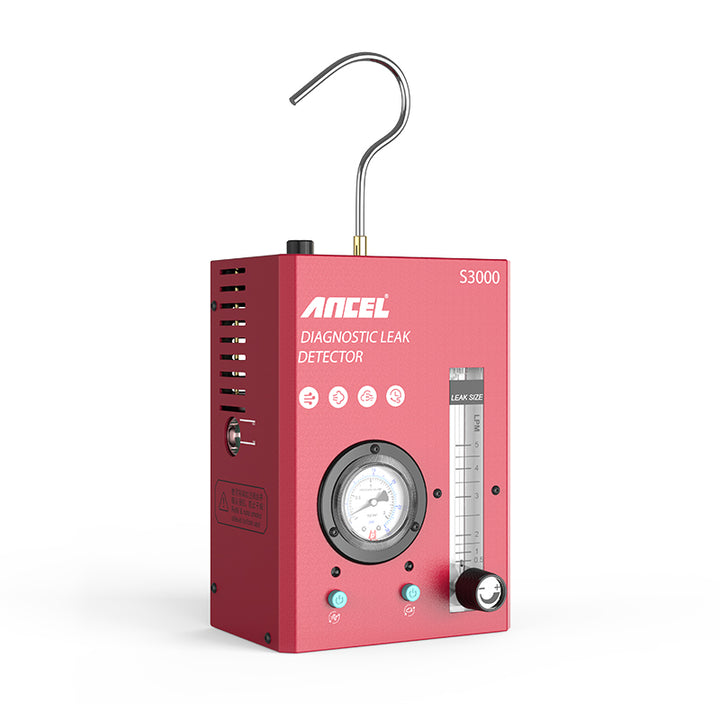

ANCEL S3000 Car Smoke Leak Detector EVAP Pipe Smoking Generator Automotive Pipe Leakage Analyzer Vacuum Leakage Diagnostic Tool

ANCEL S3000 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles and truck leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test, Various Pipe Fittings Test.

Why do you need a smoke leak detector?

• The OBD2 diagnostic instrument only tells you the result and the smoke leak detector tells you the reason.

• 60% of it is related to pressure, air or oil pressure leakage will cause the car to malfunction.

• The smoke leak detector can perform leak detection on the entire pipeline, visualized operation, all-round, no dead ends, and no leaks are missed.

• S3000 is durable and smoke is harmless.

• The pressure gauge and the flow bar can clearly determine the size of the pipeline loopholes and repair them in time.

ANCEL S3000 ADVANCED TECHNOLOGY

▶Crankcase System Test

▶Intake System Test

▶Car Sealing Test

▶Fuel Tank System Test

▶Turbo System Test

▶EVAP System Test

▶Exhaust System Test

▶Various Pipe Fittings Test

Wide Range of Applications

S3000 pipe smoke leak detector is widely used in cars, motorcycles, trucks, ships, etc. For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehlicles, ATVS, light trucks and speedboats, suitable for all car models.

Easy to use leakage test

1. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.

3. Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.

4. Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.

5. Turn on the power switch, and detector starts to work.

6. Adjust the flow gauge. Control the input smoke value and pressure to make sure the pipe system can afford the pressure.

7. In about 3 minutes, the pipe will be filled with smoke.

8. Observe the floating ball in flow gauge. If the floating ball stays still in the bottom, the pipe is sealed with. If the floating ball is arising or bouncing, the pipe is leaking.

9. Position the leak points by floating ball. If the bounce arises highly, the leakage is serious.

10. Check the leak points. Please use head lamp if necessary.

11. After leak detection, please connect well the wires and pipe

Please Note

• When you use this ANCEL S3000 Car Smoke Leak Detector for the first time, fill with 20ml oil. Please be careful NOT to beyond this range.

• The testing liquid: baby oil

• Fresh oil can be filled with only when the smoke gets thin, and it can't be filled over 20ml each time.

• Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

• During the process of leak detection, please keep away from smoke-sensitive parts.

• Do NOT run the detector over 8 minutes continuously. It needs interval rest.

• The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

• The round part of this detector has temperature, please be careful to avoid burns.

• If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

Clear results: Leak status indication

Indenependent switch control design

Air mode: First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE: After the air mode determines that there is a leak, use the smoke mode to find the leak.

OVERHEAT & ANTI-FROST PROTECTION

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles, off-road vehlicles, ATVS, light trucks and speedboats, Suitable for all car models.

Overheat Protection: When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection: The device can also work normally at -20℃.

Package List

• 1*Car Smoke Leak Detector
• 1*Carton
• 1*Intake Bladder
• 1*Smoke Delivery Hose
• 1*Adapter Cone
• 1*Intake Bladder Replacement Rubber
• 1*Power Cord
• 1*Funnel
• 1*Hook up
• 1*Manual in English
