ANCEL HD3600 Construction Machinery DPF Reset Full System Heavy Duty Truck Scanner Tools

Name: ANCEL HD3600 Construction Machinery DPF Reset Full System Heavy Duty Truck Scanner Tools
Brand: ANCEL
SKU: BC01148_3
Price: 389.99 USD
Availability: InStock

Suitable for agricultural machinery and construction machinery

~~$499.99 USD~~ $389.99 USD SAVE 22%

Order in the next [totalHours] hours %M minutes to get it between and

All System Diagnostic

In-depth Diagnosis of All Available Modules

Full OBDII Modes

Standard Diesel OBD & OBDII Protocols

HD DPF Master

DPF Reset and Regen for Most of Trucks

Wide Vehicle Support

Wide Vehicle Support for All Your Needs

Android OS

With a High-end Processor for Fast Operation

5-Inch Screen

LCD Touchscreen and Come with User-Friendly UI

Why You Need an HD3600?

There are many expensive heavy truck scanners on the market today, but they can only diagnose truck systems and do not provide professional diagnostics for construction equipment.

The ANCEL HD3600 is currently the only scan tool that can diagnose both construction machinery and heavy trucks. It is a construction vehicle diagnostic tool based on the Android tablet and is our answer to people who need a stand-alone, full-featured scan tool for work in agriculture, construction, mining, and other off-highway applications.

It provides all-system, in-depth diagnostics for nearly all construction equipment and machinery, such as loaders, dozers, street sweepers, and excavators as well as other utility vehicles and equipment., and also features full OBD diagnostics and manufacturer-level diagnostics for heavy-duty trucks.

In addition, it can perform DPF regeneration, saving you hundreds or even thousands of dollars each in maintenance costs realizing the ideal of all-in-one diagnostics!

DPF Regen：Fits for Caterpillar, John Deere, Volvo, Bobcat and Komatsu

Why need to force DPF regeneration?

Regeneration, or regen, of the DPF filter, is the process that burns the soot accumulation that is inside the DPF filter. An unmaintained DPF runs your vehicles unnecessarily hard and less efficient. A clogged DPF filter is also tied to your fuel mileage and can cause your truck to feel sluggish. If you can no longer start a regen then you will eventually get stuck in a derate which will then lead to an engine shut down.

In which situations is DPF regeneration required?

The exhaust backpressure sensor is replaced.
The PM trap is removed or replaced.
The fuel additive nozzle is removed or replaced.
The catalytic oxidizer is removed or replaced.
The DPF regeneration MIL is turned on and maintenance is performed.
The DPF regeneration control module is replaced.

Why to choose HD3600 to perform DPF regeneration?

1) Make sure your construction machinery vehicle has enough power again (Suitable for Caterpillar, Volvo, John Deere, as well as Bobcat and Komatsu equipped with Cummins engines.)
If the diesel filter is clogged, the vehicle will not be able to fully use the fuel, resulting in insufficient mileage. Therefore, it is very important to clean the DPF filter regularly, which only HD3600 can do.

2) Save a lot of maintenance costs:
It is well known that maintenance costs at least 500-2000 dollars, but if you do the work yourself, your long-term savings will be enough to buy a new car.

3) Other benefits of cleaning your DPF filters:
Better MPG, better gas response, less frequent regenerations (passive), longer DPF life, less downtime...

PIN Detect

This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface "Tools" to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line.

Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage

OEM-Level All system Diagnostic Scanner

HD3600 diesel scanner can not only support full system scanning of construction machinery vehicles conforming to standard diesel OBD protocol, such as engine, ABS/EBS, transmission, body controller, chassis controller, instrument panel system, cruise control, gateway, etc. , also supports all system diagnostics for heavy duty trucks. Meet the diagnostic needs of a variety of models!

OBD-Level Diagnostic on Engine

Retrieve ECU Information: Read and display the control system module information detected from ECU.

Read Fault Codes: Read the fault code information retrieved from the vehicle system module.

Erase Fault Codes: Clear the fault code and freeze frame data retrieved from the vehicle system module.

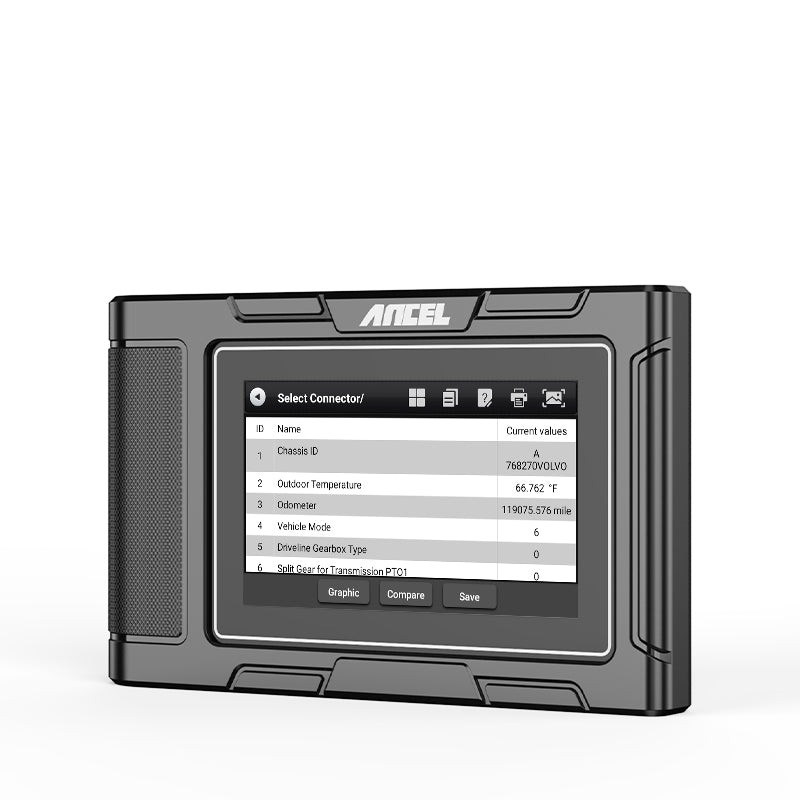

Review Live Data: Read and display the real-time operation parameters of the current system module.

Graphic: View the real-time operating parameters of the unit in the data stream waveform graph mode, and select [List] to return to the numerical display state.

Live Data Stream: Compare the data steam. Select a saved data file of the same vehicle type in the pop-up dialog box, and select [OK] to return, and then an additional column "CMPR values" in the data stream interface.

Save: Save the current data stream (for subsequent data stream comparison)

"Simulate" & "DEMO" Menu

In order to facilitate your understanding of certain functions and operating steps of the software, our engineers have developed a simulate menu. The data in it are all saved after our actual vehicle test. If you want to know, you can enter the "Simulate" or "DEMO" menu to browse.

More Convenient to Use

One-Click Screenshot
This function allows you to save important information about vehicle diagnosis through one-click screenshots, and then you can view the screenshots in “DATA MANAGEMENT".

One-Click Printing

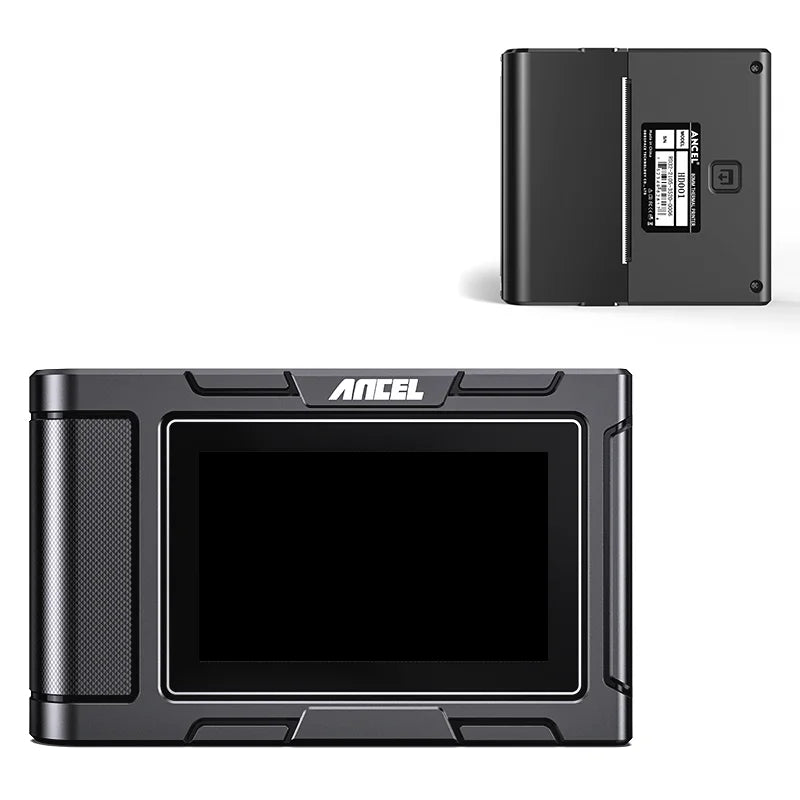

HD3600 scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. Note: The printer and HD3600 diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.

One-Click Feedback
This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.

One-Click Upgrade
No need to update on computer. By connecting wifi, it will automatically search for the latest update program, just click update, you will get the latest version (more car models, bug fix) of this scanner. You will enjoy lifetime update through one-key function.

How one-click to activate the HD3600?

Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup;
Step 2: Connect WIFI. Go to Settings>WIFI;
Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate".

Note:
1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal.
2. Click activate directly to use it, no registration is required.

Two languages Support

You can easily navigate and interact with the device in your preferred language, as it supports free switching between English and Spanish .

Multiple OBD Protocols

Supports diesel OBD and OBDII standard protocol, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4 and CDL private protocol.

Professional Data Management

Allows you to capture, view and save diagnostic reports, screenshots, and problem feedback files. Most of these files are created by performing toolbar operations on the vehicle diagnostic interface. No more worrying about data being forgotten or lost.

Enhanced Display Wiring Diagram

Allows you to diagnose the Cummins engine via a jumper or jumper box, eliminating the trouble of damaged and lost diagnostic cables. It definitely save a lot of troubles for the diagnosis work of auto repair technicians, auto repair shops, DIYers.

Save Time and Money

The HD3600 is equipped with 4 diagnostic ports (OBDII, Diesel 6/9, CAT -9). Buying HD3600 is equivalent to owning 3 vehicle scanners and 1 DPF regeneration device. You will not only save a lot of money on repair shops traps, but also time on towing to a workshop.

5"Touch Screen with Android OS

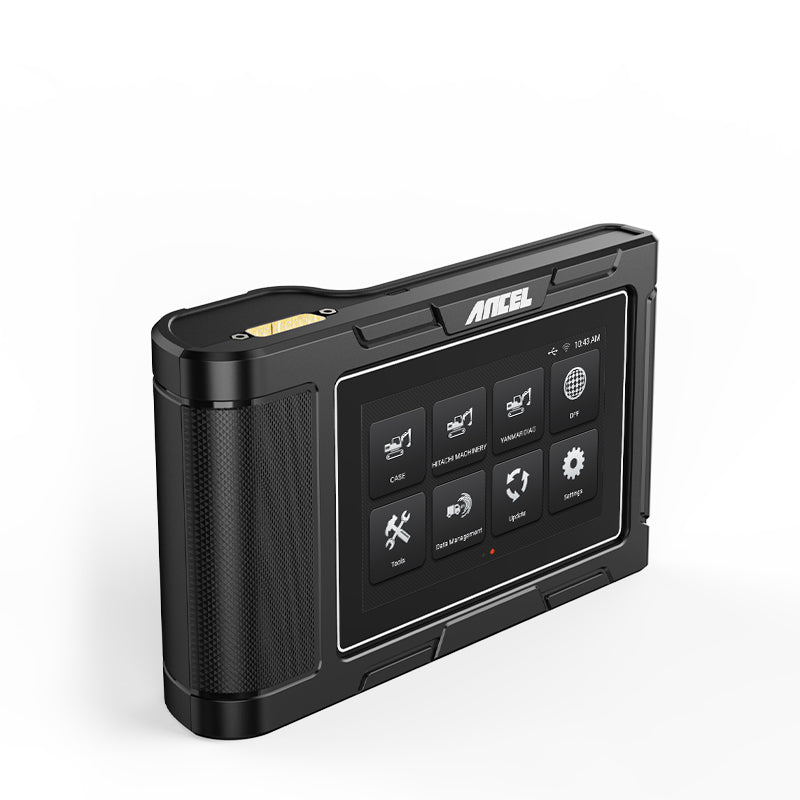

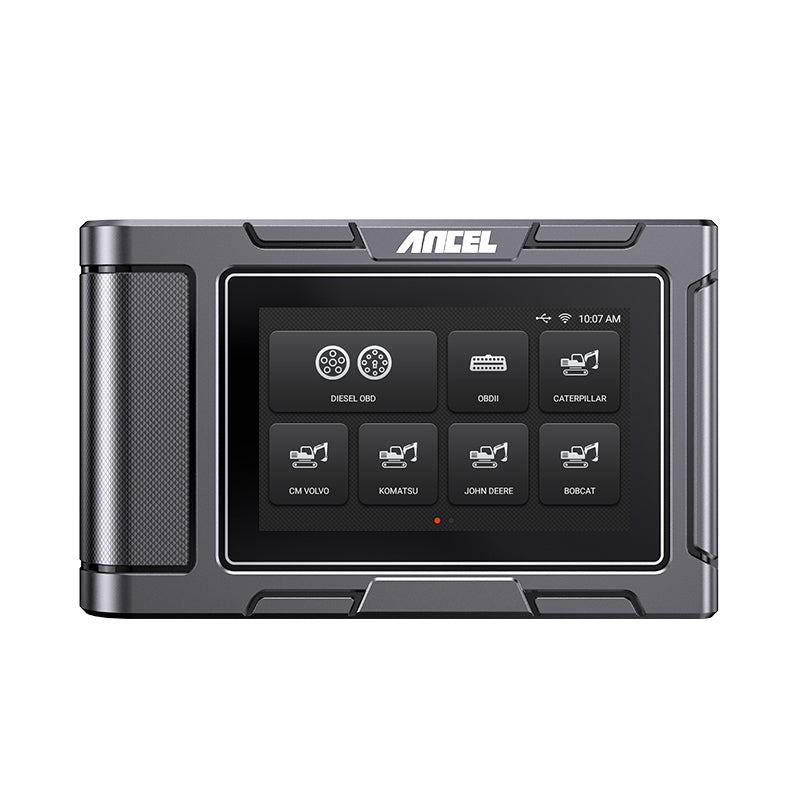

The HD3600 is equipped with a 5-inch LCD touchscreen featuring the latest Android operating system. Whether you are a seasoned professional or a novice in truck diagnostics, the HD3600's intuitive touch screen and Android OS are designed to help you get the job done with ease and confidence.

Certification Report

The HD3600 comes with CE, FC, RoHS, and various other certifications. You can use the X6 confidently, which offers reliable performance for all your diagnostic needs without worrying about quality problems.

Lifetime Free Update

The HD3600 Heavy Duty Truck Scanner supports lifetime free software upgrades. New parameters, features and the latest vehicle data are constantly updated with the click of a one-touch upgrade button on the device.

Lifetime Tech Support

Buy from our website and enjoy lifetime tech support. Our professional technician team will here to assist you with any issues or concerns you may have. Submit your queries to us with detailed files and attachments, and we'll promptly give accurate and effective solutions to you.

What's in the box?

HD3600 Scanner x 1

DIESEL 6-Pin & 9-Pin Connector x 1

User Manual x 1

OBDII 16-Pin Cable x 1

CAT-9 Cable x 1

Carton x 1

QUESTIONS & ANSWERS

Ask a Question

What adapters or updates do I need to use the HD3600 to diagnose problems with the Ford Super Duty F250 ?

Hi, The ANCEL HD3500 will more suitble for F250. Did you buy the HD3600?
I have fully updated my new HD3600 and got an adapter cable to connect to my 2016 Bobcat T870 and do see data. However I do not see a way to run Regen on the Bobcat T870 which I need to do. Also, What power supply should I get for the HD3600 as the HD3600 glitches when I start the T870.

Hi, could you send me the model number of the engine first.

Works great everything you'd want

I was able to plug in and read codes right away. Then I was able to hook it up to wifi and was blown away after the free updates I was able to use the special functions feature and force regen and more

Seems okay so far

Seems to work okay so far. I was supposed to get a free carry case with the scan tool but did not receive one with it. Tried to connect to a detroit in a freightliner with no success yet through the diesel OBD section. Interested to see how well it works on heavy equipment since that's what I bought it primarily for.

Did work on my John Deere loader

When I hooked it up to the caterpillar it said this machine requires dual scan tools simultaneously to work, not sure how many other caterpillar machines require this two-unit scan, but this tool didn't work on mine. did work on my 524K John Deere loader, gave me the wrong code description on a Cummins motor in a Komatsu haul truck I scanned. seems hit and miss. great for live data reading,

worked well for diagnostics of problems

Works well good value easy to use
