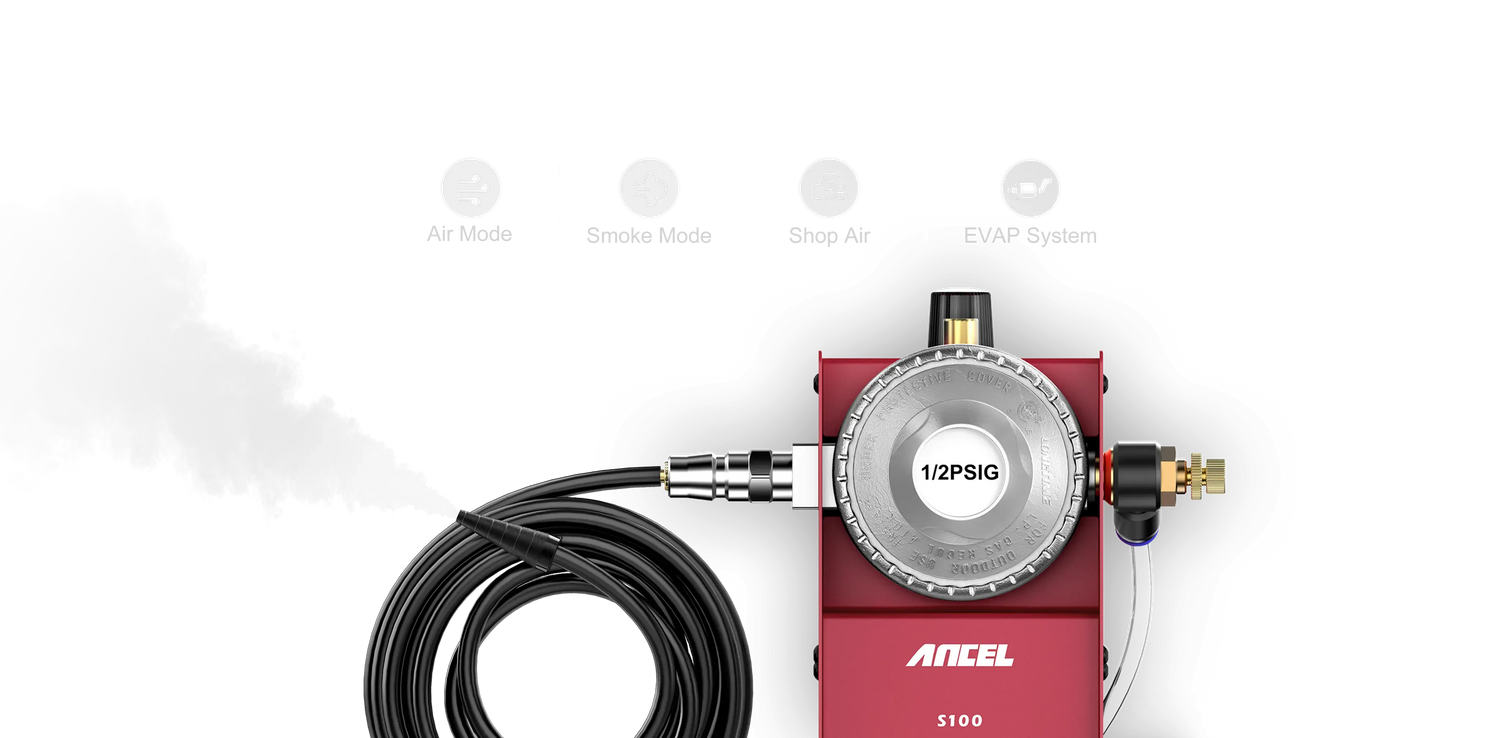

ANCEL S100 Automotive EVAP Smoke Machine Leak Detector with Service Port Adapter Adjustable Flowmeter 12V Small Car Vacuum Smoke Tester Diagnostic Test Tool for All Vehicle
When your car's vacuum hose ruptures causing black smoke from the exhaust and a significant increase in fuel consumption; Leaking vacuum hoses causing the engine to run weakly; Blockage can cause...
When your car's vacuum hose ruptures causing black smoke from the exhaust and a significant increase in fuel consumption; Leaking vacuum hoses causing the engine to run weakly; Blockage can cause idle drift. Don't worry, the S100 Smoke Leak Detector can do smoke test of EVAP systems, vacuum leaks, low pressure turbo leaks, intake manifolds, cooling/EGR/exhaust systems. and solve these troubles quickly!

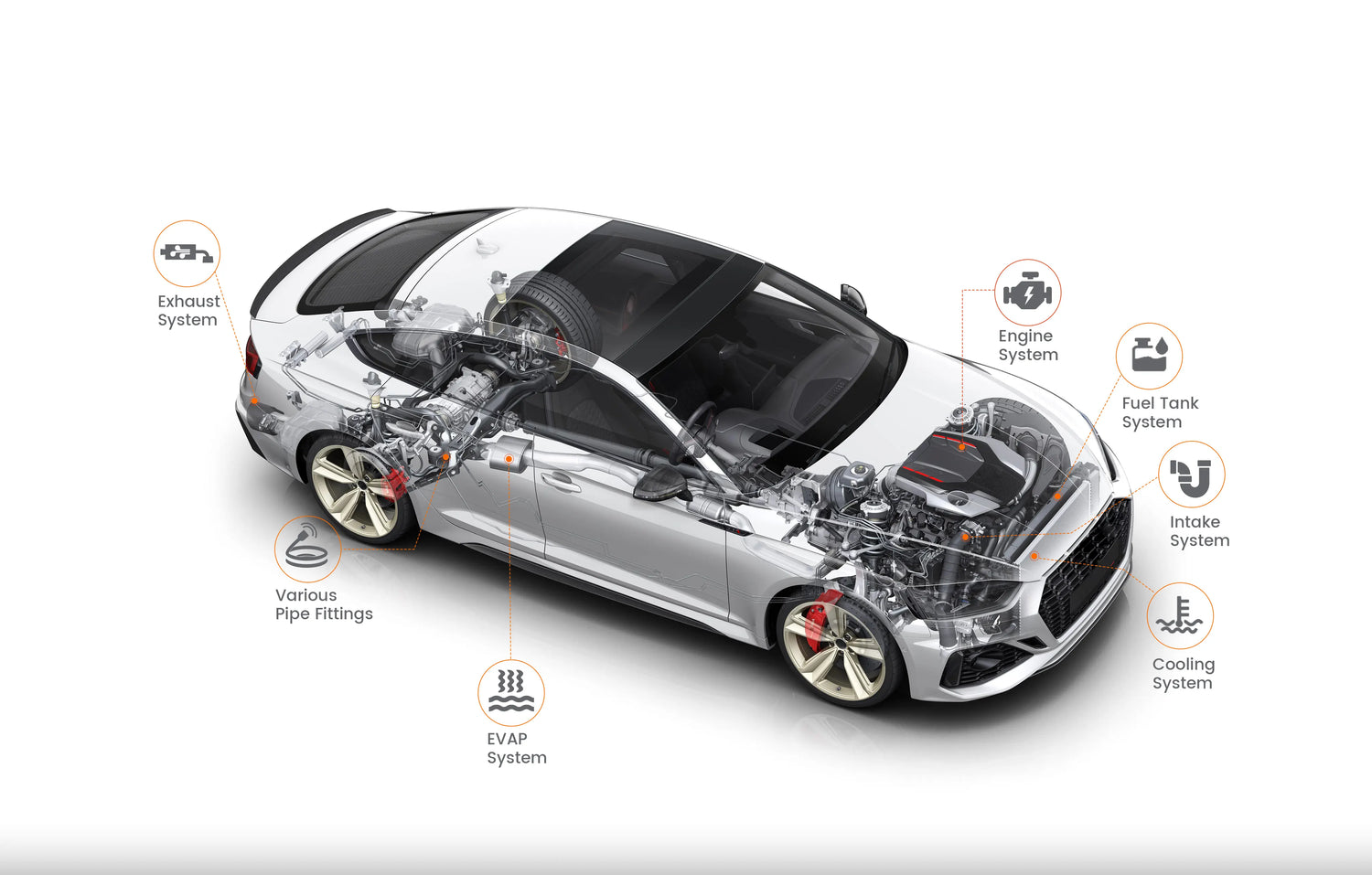

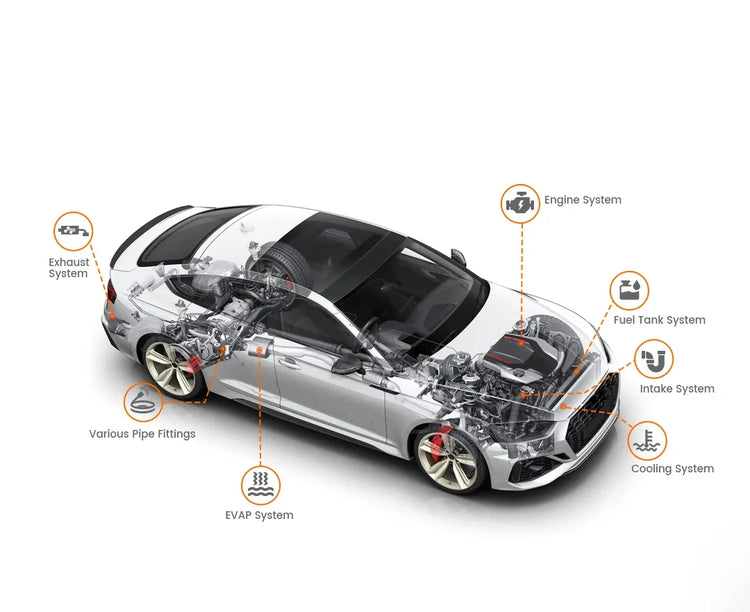

FULL SYSTEM DIAGNOSTICS, DON'T MISS ANY LEAKS.

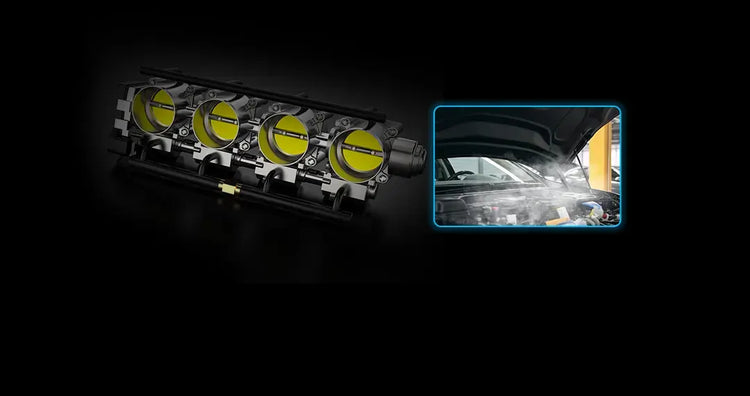

- EVAP SYSTEM TEST: Leakage in the fuel evaporation system causes fuel vapour to escape into the atmosphere, resulting in waste and pollution or unstable engine idling.

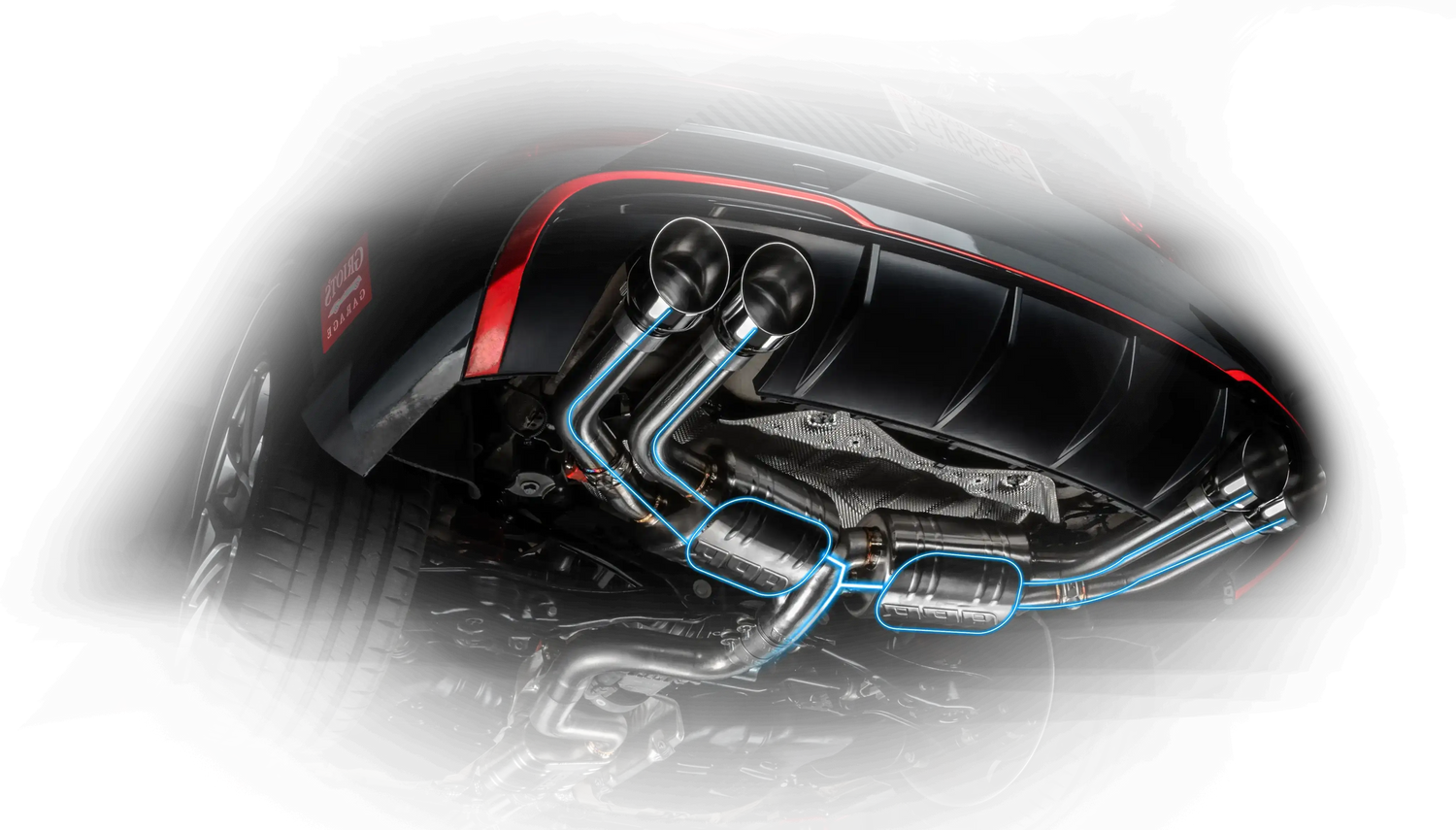

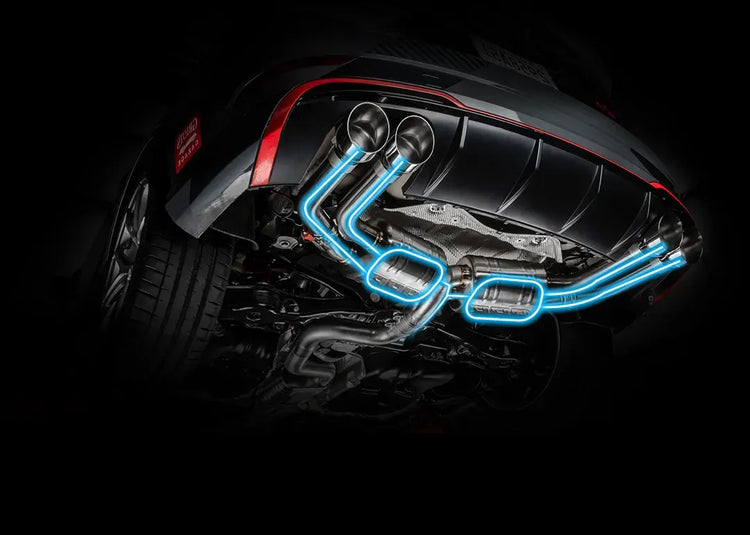

- EXHAUST SYSTEM TEST: Uncleaned harmful gases escaping into the atmosphere or increasing the noise of the vehicle are the main disadvantage when leaks occur in the exhaust.
- FUEL TANK SYSTEM TEST: If there are gaps in the fuel tank and pipes caused by improper installation or insufficient sealing of the fuel tank cap, it may cause leaks in the fuel tank system.
- TEST OF VARIOUS PIPE CONNECTIONS: Smoke test of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
- CAR SEALING TEST: Poor sealing of the car can lead to many inconveniences, such as it is not warm and dusty, not soundproof, not waterproof, etc.
- CRANKCASE SYSTEM TEST: Excessive pressure or corrosion of the crankcase is the main reason why the crankcase seal is damaged and oil leaks.
- INTAKE SYSTEM TEST: A leak in the intake system will result in inadequate intake of the car engine, leading to low engine performance.
- TURBO TEST: The leakage of coolant would cause the engine to indicate a high water temperature.
EASY TO USE
Notice: Maintenance technicians need a certain knowledge base of engine structure.
- Turn off the power to the car, remove the air filter and throttle connector. Note: If you need to test the EVAP system, you need to manually close the solenoid valve

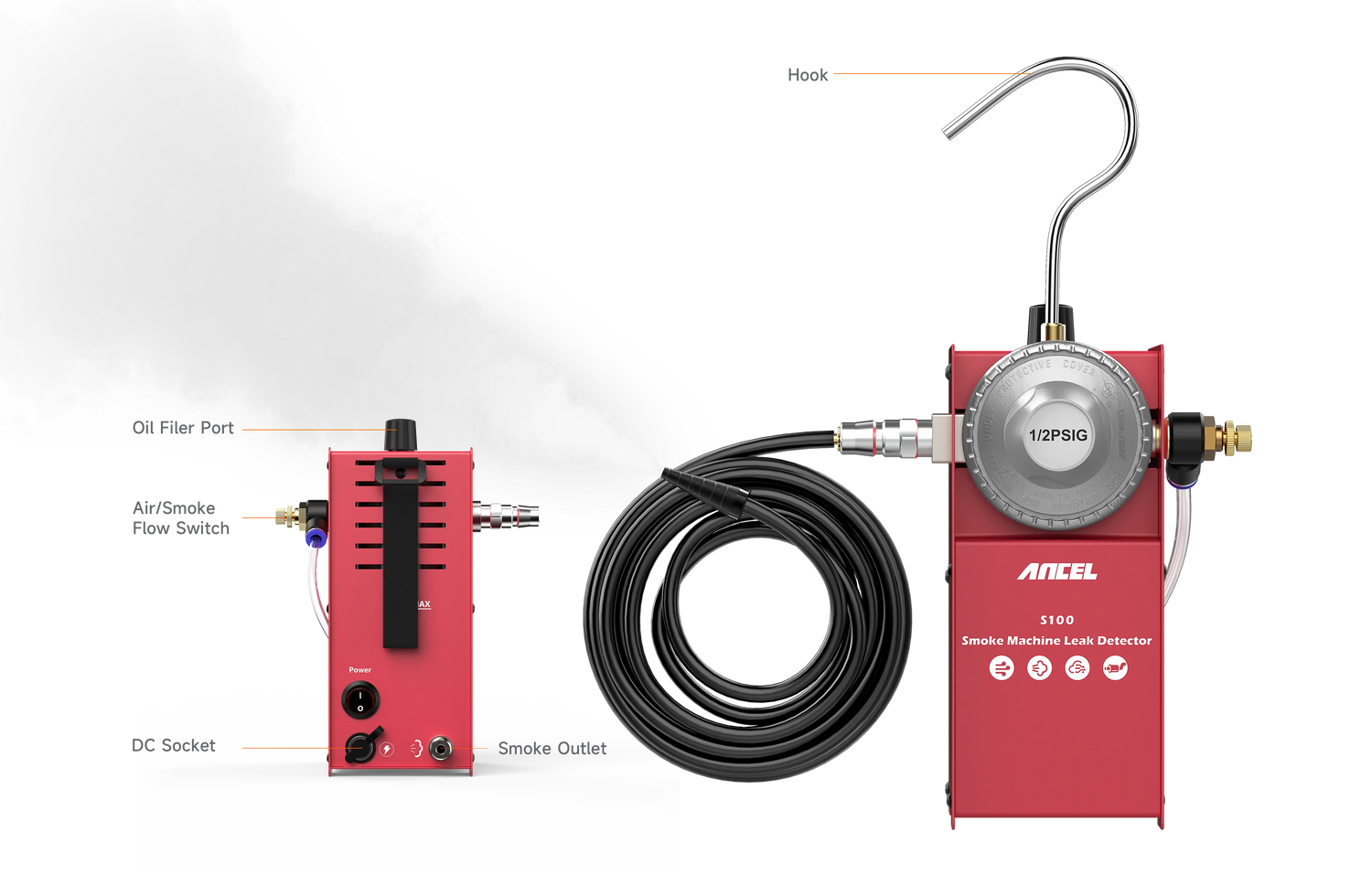

- Pour baby oil between the max and min oil volume line, connect the power cord to the 12V car battery, choose the appropriate adapter cone to connect the smoke nozzle and the system.
- Press the air control switch, wait for 30 seconds, and listen for the squeaking sound to check whether there is a leak in the pipeline or not.
- Press the smoke control switch, when evident smoke is appearing from the smoke nozzle, reinsert the smoke nozzle into the adapter cone, visible smoke can help you pinpoint the location of the leak.
- Press the smoke and air control switch again to stop producing smoke and air, test is completed.
OVERHEAT & ANTI-FROST PROTECTION
For detecting the leakage of pipe systems on cars,motorcycles, snowmobiles, off-road vehlicles, ATVS, light trucks and speedboats, Suitable for all car models.
Overheat Protection: When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.
Anti-frost Protection: The device can also work normally at -20℃.
Wide Range Of Applications
For detecting the leakage of pipe systems on cars,motorcycles, snowmobiles, off-road vehlicles, ATVS, light trucks and speedboats, Suitable for all car models.
HOW TO OPEN EVAP SERWICE PORT?
Caution:
1. When you use this ANCEL S100 Car Smoke Leak Detector for the first time, fill with 20ml oil. Please be careful NOT to beyond this range.
2. The testing liquid: both liquid paraffin and baby oil are OK.
3. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4. Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5. During the process of leak detection, please keep away from smoke-sensitive parts.
6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8. The round part of this detector has temperature, please be careful to avoid burns.
9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
Using tips
▶Cannot test air conditioning ducts
▶Do NOT use the unit on smoke-sensitive parts. Eg. Lamp housing.
▶The equipment is compatible with mineral oil-based baby oil like Johnson&Johnson Pink bottles.
Pure #5 white oil is the best choice if available.
▶Always confirm Fluid level before use, if the fluid level is low enough to the bottom of the fillerport, it will need a refill.
▶For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats. Suitable for all car models.

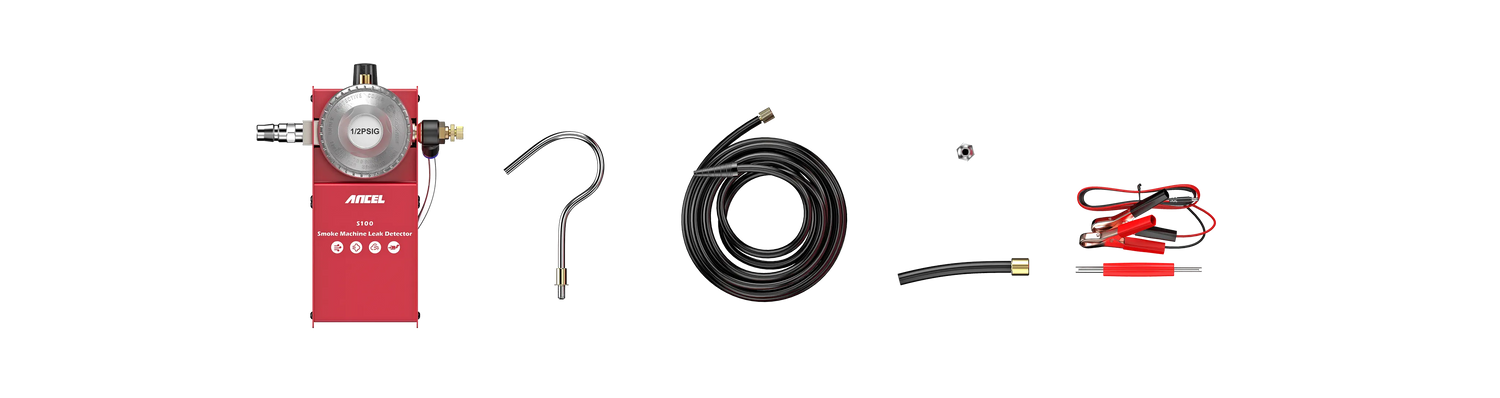

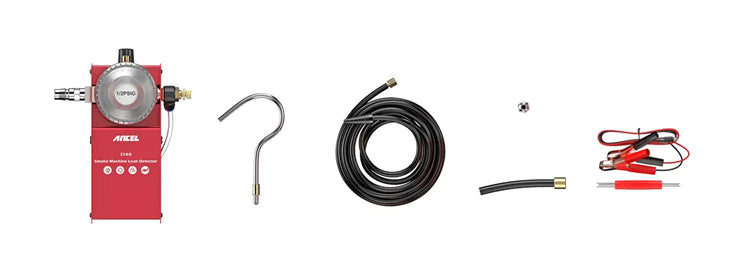

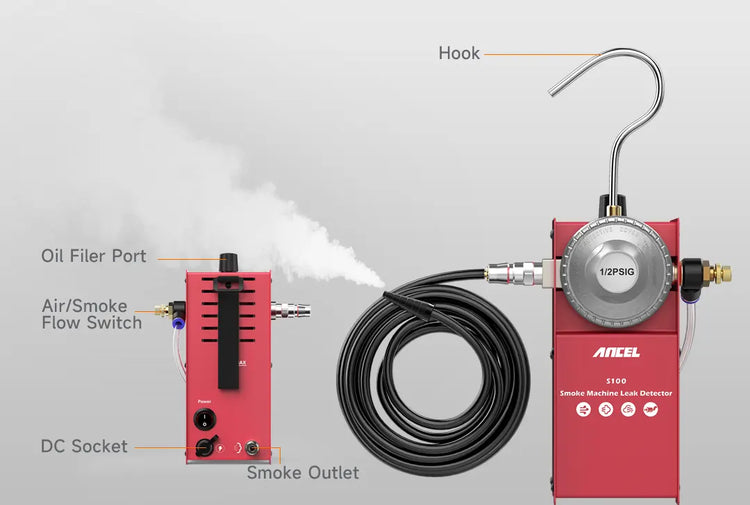

1pc * ANCEL S100 Car Smoke Leak Detector Main Unit
1pc * Power Cord
1pc * Hook up
2pc * EVAP Kit
1pc * Smoke Delivery Hose
1pc *Air Adpt
