ANCEL DS300 Bidirectional OBD2 All System Scan Tool with 28+ Resets / FCA Autoauth

Basic tasks such as a full-vehicle scan, reading codes, and clearing codes are straightforward. Advanced functions require more diagnostic knowledge and must be performed through the correct vehicle-specific menu.

For first-time use, we recommend：
• Updating the device and vehicle software
• Trying automatic VIN identification

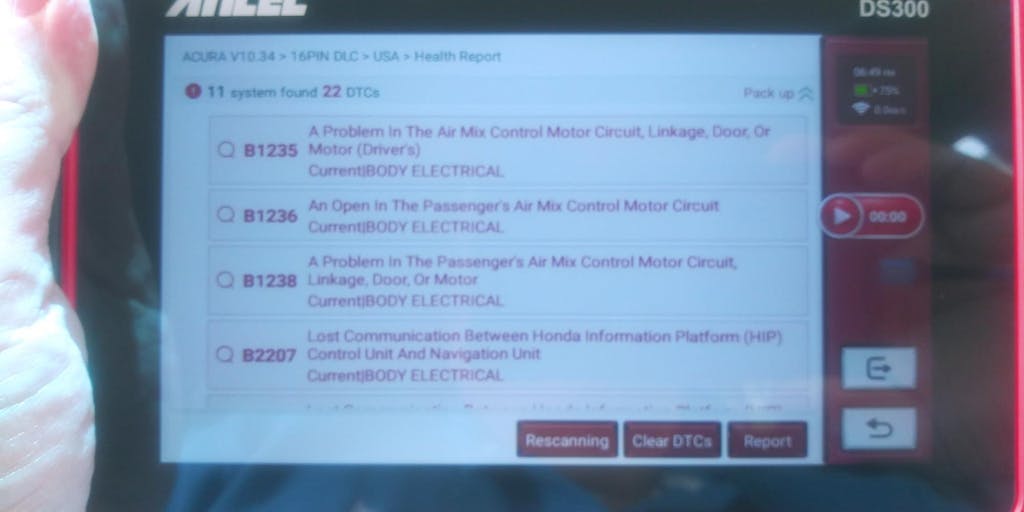

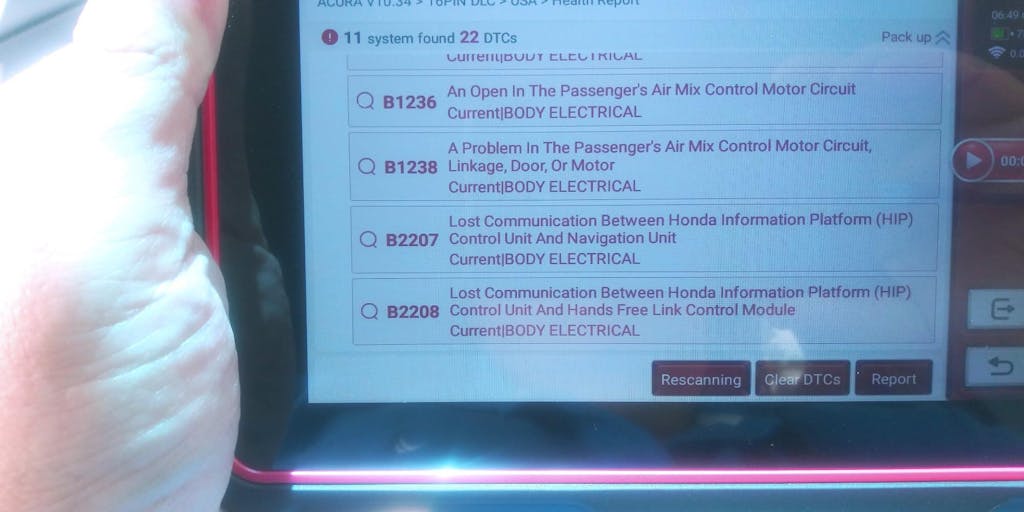

• Running a full-system scan, and then interpreting trouble codes together with live data.

The DS300 is a car diagnostic tool: it can help locate and verify problems, but it does not automatically diagnose or repair every vehicle fault.

A basic OBD2 code reader is mainly designed for emissions-related engine codes. The DS300 supports a much broader diagnostic workflow:
• Scan multiple vehicle systems instead of only the emissions-related engine module.
• View live data and diagnostic records.
• Run active tests on supported vehicles to check whether motors, valves, relays, and other actuators respond.
• Perform supported post-repair resets, adaptations, and relearns.

A trouble code is still a diagnostic clue, not proof that a specific part has failed. The DS300 gives you more data and test options to make a better diagnosis.

The DS300 covers a wide range of passenger-vehicle brands, but available systems and functions depend on the make, model, model year, engine, trim, and control-module configuration.

• Basic OBD2 functions generally work on compatible 1996-and-newer vehicles.
• Full-system diagnostics, active tests, coding, and 28+ service functions must be confirmed vehicle by vehicle.

Before ordering, send us:
• Your full VIN
• The exact function you want to perform
• Engine or control-module information you neede

Even vehicles with the same model name can have different function coverage across years and configurations.

No. The DS300 supports bidirectional control/active tests, but the available tests depend on what each vehicle ECU allows.

• Common supported tests may include cooling fans, fuel pumps, injectors, windows, lights, valves, and shift solenoids.
• Available items can vary even between models from the same brand.
• Before ordering, provide your VIN and the exact component you want to test so compatibility can be confirmed.

No. "28+ service functions" refers to the categories of service functions the DS300 offers; it does not mean every vehicle supports every function.

Functions such as EPB service, ABS bleeding, BMS/battery registration, DPF service, throttle adaptation, and injector coding are vehicle-dependent. Some vehicles use a manual procedure or may not expose a function to third-party scan tools. We recommend confirming the 1–3 service tasks you use most often before purchasing.

Supported: ECU Coding (Adaptation Coding / Variant Coding)

• Applicable scenarios:
After replacing a control module or actuator that already contains adaptive data, the DS300 can be used to configure parameters, perform variant coding, or complete data matching.

• Common applications include:

- Injector Coding (writing injector codes) on vehicles such as Volkswagen, Audi, BMW, and Mercedes-Benz
- TCM adaptation and transmission module matching
- Brake pad reset and adaptation
- Activation of certain hidden features (offline/online coding availability depends on the vehicle brand and model)

Not Supported: ECU Programming (Module Programming / Flashing)

• Not supported scenarios:
- The DS300 cannot write the original operating system or bootloader to a completely blank control module (Blank/New ECU/PCM).
- It cannot perform dealer-level ECU firmware reflashing, software updates, or ECU tuning (Re-flashing / ECU Tuning).

Note:
ECU software flashing, blank module programming, or manufacturer-authorized online programming may still require dedicated OEM-level equipment.

Yes, compatible DS300 hardware versions support CAN FD, but CAN FD capability depends on the device hardware revision.

• DS300 units with letters in the serial number support CAN FD directly without an additional adapter
• Serial numbers containing digits only—typically units produced before May 2025—do not support CAN FD.

If you are unsure, contact ANCEL support with the device serial number before purchase or use so the hardware version can be confirmed.

For FCA vehicles (Jeep, Chrysler, Dodge, etc.) from 2018 and newer equipped with a SGW (Security Gateway) module, due to Stellantis'official security restrictions, authorization through the AutoAuth official platform is required to perform bidirectional controls and clear certain diagnostic trouble codes (DTCs).

Vehicles That Do Not Require AutoAuth Subscription

• Older FCA vehicles without a Security Gateway (SGW) typically do not require an AutoAuth subscription.
• Even without AutoAuth authorization, you can still read all available system fault codes and view live data normally.

Subscription Requirement

Whether AutoAuth authorization is required depends on the specific vehicle year, model, and equipped systems.

AutoAuth Subscription Fee

• To access SGW-protected functions, you need to register an AutoAuth account and subscribe to the AutoAuth service.
• The subscription fee is charged directly by the official AutoAuth platform (approximately $128/year, supporting up to 100 devices).
• This fee is collected by the vehicle manufacturer’s authorized service platform and is not an ANCEL platform fee.

Lifetime Free Software Updates

• The DS300 comes with lifetime free updates.
• After activation, users can continuously receive **free software updates and vehicle coverage database updates.

Function Availability Without Updates

• Even if you choose not to update the device in the future, the installed software, supported vehicle coverage, and available functions will continue to work permanently.
• The device will not be locked or disabled due to skipped updates.

If you have more questions about the DS300 features, compatibility, or usage, please visit our DS300 FAQ for more detailed information.
