ANCEL L8000 Review: A Dual-Mode Smoke Machine for EVAP and Boost Leak Testing (Real-World Use)

Leaks waste time because they hide just well enough to make you second-guess everything. The hose looks fine. The clamp feels tight. The fault keeps returning. Then you find the split on the underside of a line that only opens under pressure.

Smoke testing works best when the system can be sealed and filled in a controlled way. The result is a visible leak trail, which tells you exactly where to focus the fix. When the leak path is internal or not reachable from the test point, smoke may not reveal it, and other checks become more appropriate.

The L8000 is built around that practical workflow. It combines two pressure modes in one unit, adds a digital display for monitoring, and includes an internal pump so you can test without relying on shop air for most common use cases.

Key takeaways

• Dual-mode testing covers low-pressure EVAP checks and higher-pressure intake/turbo leak checks in one machine.
• A digital display helps monitor test status and improves consistency
• The built-in pump and carry case make it practical for small shops and mobile work.
• The included adapter kit matters because sealing the system is what makes smoke testing reliable.
• Smoke testing is strongest for external leak paths the smoke can reach, so setup quality matters.

What ANCEL L8000 is built to do

This unit is a professional-grade automotive smoke leak detector designed to locate external leaks by pushing smoke through a sealed system and letting the leak show itself at the surface.

This approach is most useful when a symptom suggests a leak but the leak is too small, too hidden, or too condition-dependent to find by sound alone.

Common leak-type complaints where smoke testing usually helps:

• EVAP leaks that keep failing readiness
• low boost, underboost, or inconsistent boost response
• lean trims and unstable idle with no clear hiss
• certain external exhaust leaks around joints and flanges that are hard to see, where smoke can assist in visual confirmation when the system can be safely and properly tested

The features that actually change the workflow

Dual-mode pressure is the main reason to choose it

EVAP systems and boosted intake plumbing do not want the same test pressure. A dual-mode setup matters because it lets you stay gentle on EVAP components and still run a more demanding fill for intake and turbo plumbing.

A low-pressure EVAP test is about small leaks and sealing integrity. A higher-pressure intake test is about couplers, clamps, plastic seams, and connections that only open when the system is loaded.

Beyond simply switching between two pressure ranges, the L8000 also allows for more controlled testing through adjustable parameters and a custom mode. This becomes especially useful when performing leak decay testing, where maintaining a stable and repeatable pressure level helps confirm whether a system is properly sealed after a repair.

Instead of relying on a fixed output, the ability to fine-tune the test conditions makes the tool more adaptable across different vehicle systems and diagnostic scenarios.

Digital display reduces testing guesswork

A digital display gives you real-time feedback during the fill. That is useful when you are repeating a test after a repair and want the same stable result.

A stable reading also helps you catch setup mistakes early. A port left open can look like “a big leak” until you notice smoke pouring out of the wrong place.

Additionally, the system supports automatic leak level detection, which helps users quickly identify whether a leak is minor or more significant without relying entirely on subjective judgment. This can be especially useful during initial diagnosis, where understanding leak severity early can guide the next step more efficiently.

Built-in pump is a real advantage for portability

A built-in pump removes the need for an external compressor. That matters for mobile technicians and for bays where shop air is not always convenient.

It also keeps the setup cleaner. Fewer hoses means fewer variables and fewer chances for your setup to become the leak.

The unit also supports a high-output smoke mode (referred to as a high-voltage smoke test), which is designed to produce smoke more quickly and maintain stable output during demanding tests. This can be helpful when working with larger systems or when a faster fill time is needed.

The kit and case matter more than people think

Smoke testing fails when the system is not sealed. The included caps and adapters are not filler. They are what makes “out-of-box use” realistic.

The case is also practical. Smoke machines and adapters get moved constantly. A case keeps everything together and protects the tool from workshop abuse.

Systems it can be used on, in practical terms

EVAP

An EVAP smoke test is mainly about small, external leaks in hoses, fittings, purge plumbing, and service-port sealing points. Low pressure is the correct lane here.

Intake and turbo plumbing

A boost leak tester workflow is about filling the intake tract and charge path so smoke exits at couplers, intercooler joints, throttle body connections, diverter valve plumbing, or vacuum reference lines. Higher pressure mode exists for that lane.

Exhaust and vacuum-related leaks

Smoke testing can help locate flange leaks and small openings around exhaust joints. Smoke can also help locate vacuum leaks around PCV plumbing, booster lines, and intake gasket edges if the system can be isolated properly.

Beyond these common systems, the L8000 is also designed with broader compatibility in mind. It can be applied across a wide range of vehicles, including cars, motorcycles, trucks, and even certain hybrid platforms, as long as the system under test can be properly sealed.

This wider coverage makes it closer to a full-system leak detection tool rather than a single-purpose smoke tester.

What it looks like in real diagnostic work

A repeating EVAP code is a good example of why smoke testing pays off. These leaks are often small and silent. A low-pressure fill makes the leak visible at a cracked elbow, a loose line end, or a sealing point that looks fine until smoke shows it.

Turbo complaints are another common win. A car can feel flat with no obvious broken parts. A clamp can be slightly off. A coupler can have a hairline split. A plastic seam can open only under pressure. A higher-pressure fill makes these leaks show at the exact edge that needs attention. The clean habit is retesting after the fix, using the same setup, so the result is confirmed rather than assumed.

Lean trims and unstable idle often fall into the same category. Vacuum leaks do not always hiss. Some are behind the engine. Some open when warm. Smoke can show a leak path around a gasket corner, a PCV connection, or a booster line junction that is hard to inspect by eye.

These are the moments where smoke testing feels less like guesswork and more like a clear, visual confirmation.

Dual-mode vs single-mode smoke machines

Most buyers are choosing between “one unit that covers more jobs” and “a cheaper unit that covers one job.”

The advantage is not just producing more smoke, but being able to apply the right pressure, control, and testing approach for different systems.

L8000 vs L5000: Which Model Should You Choose?

Which one to buy?

Opt for the L8000 if:

• You require professional-grade diagnostic precision (e.g., pressure decay testing for post-repair validation).
• Repeated, consistent testing (e.g., workshop batch diagnostics, multi-vehicle maintenance) is part of your workflow.
• You value an intuitive color digital display for real-time data visualization and easier parameter adjustment.
• Your use case leans toward light commercial use (small shops, mobile repair services) or advanced DIY projects.

Opt for the L5000 if:

• You’re seeking a budget-friendly solution for everyday leak detection needs.
• Your focus is on basic troubleshooting (EVAP system leaks, turbo/intake leaks, routine checks).
• You primarily use the tool in a home garage setting for personal vehicle maintenance.
• Core functionality (adjustable pressure, built-in pump, multi-system compatibility) is your priority over advanced features.

Ease of use, learning curve, and consistency

The setup quality drives results. The buttons are the easy part.

Common reasons a test feels “inconclusive”:

• An open port was never capped
• The wrong mode was used for the system
• The wrong section of the system was filled
• Smoke was not given enough time to fill a large volume

A simple workflow prevents most of that:

• Seal the system fully.
• Select the correct mode.
• Let smoke stabilise.
• Inspect slowly with good light.
• Repair one leak point at a time, then retest the same way.

Routine care is straightforward. Keep the unit dry, keep adapters together, use the correct smoke fluid, and keep the smoke path clean so output stays consistent.

ANCEL L8000 Pros and cons

Pros

• Dual-mode pressure supports EVAP and intake/turbo leak testing in one unit
• Digital display improves monitoring and repeat testing
• Built-in pump supports portability without external compressors
• Carry case and adapter kit support faster setup and transport
• Non-destructive testing with fast external leak point location
• Broad use across cars and powersports-style applications when the system can be sealed

Cons

• Results depend heavily on sealing and isolation quality
• Some vehicles may still need extra fittings beyond the included kit
• There is a learning curve if smoke testing is new
• Smoke testing is strongest when the leak path is reachable from the test point

Buying checklist

• Your workload includes both EVAP and intake/turbo leak checks.
• You want a built-in pump because shop air is not always convenient.
• You are comfortable learning sealing and isolation basics.
• You plan to retest after repairs to confirm results.

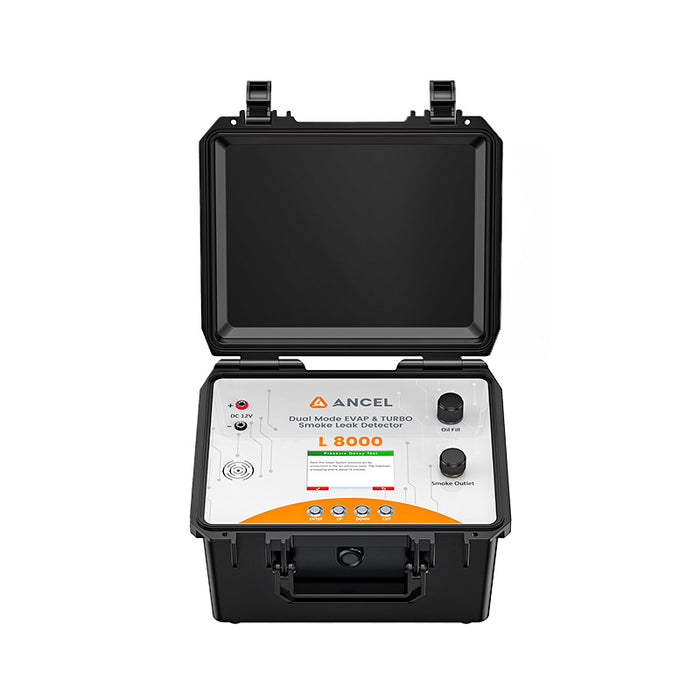

ANCEL L8000 Smoke Leak Detector

• ✔ Dual-Mode Testing + Pressure Decay
• ✔ Color Display + Built-In Air Pump
• ✔ Multi-System Fit + Pro-Durable

👉 Check Price & Details

FAQ

Can ANCEL L8000 handle EVAP and turbo leaks?

L8000 supports low-pressure EVAP testing and higher-pressure intake/turbo leak testing in one unit.

Does L8000 need an external air compressor?

L8000 includes a built-in pump, so this ANCEL smoke machine can be used without shop air.

What makes smoke testing “miss” a leak?

Poor sealing, an uncapped port, filling the wrong section, or not allowing smoke to stabilise are the most common causes.

Is smoke testing safe?

Smoke testing is non-destructive when the correct mode is used and the system is tested appropriately.

Is the ANCEL L8000 too complicated for new users?

The machine itself features simple operation and intuitive controls.

The main learning curve comes from basic vehicle sealing and connection steps, which are common for all professional smoke testers.

With the included instructions, beginner DIYers can quickly get started with basic leak detection.

Can all L8000 accessories fit inside the original carry case?

No. The heavy-duty original case offers great protection for the main unit.
Due to compact design, full accessories cannot be fully stored inside the case together.
Small fittings and cables can be organized with the matched storage bag for neat daily arrangement.

Can the L8000 detect exhaust leaks, cooling system and HVAC leaks?

It effectively locates external exhaust joint and flange leaks. For cooling system testing, full liquid drainage is required beforehand.

It also supports expanded HVAC line inspection, making it a multi-functional full-system leak detector.

Is the L8000 durable enough for small repair shops?

As an upgraded generation model, it optimizes internal structure and heating components for longer service life.

It perfectly fits light to medium daily workshop workload and mobile repair use, and is designed for long-term stable regular operation.

Do I need to buy smoke fluid separately? What oil can I use?

Smoke fluid is not included out of the box.

Special smoke oil and mineral oil are highly recommended for stable smoke output and mild odor.

Common household oil can be used for temporary emergency use.
